CA9052 Four Chanel CWDM / LanWDM DFB Laser Source

The CA9052 Four Chanel Desktop CWDM/LanWDM DFB laser source offer superior performance for the test of CWDM, DWDM components, AWG & PLC components, optical amplifiers, and other general purpose of fiber optical test and measurement applications. It is special design for volume couplers, transceiver/receiver and PLC production line application.

CA9052 Four Channels Desktop CWDM/LanWDM DFB laser source is a High Performance, Small Dimension, Fast Startup, and Affordable Optical Laser Source. It provides four channels high performance, fix wavelength laser output. UC Instruments can provide any four channels of 850, 980, 1250,1270,1290, 1310,1330, 1350, 1370, 1390, 1410, 1450, 1470, 1490, 1510,1530,1550, 1570, 1590, 1610, 1625 nm wavelength laser output per customers request.

Features

  • High performance
  • Quick startup
  • Any Four Channels Difference Wavelength
  • S electable Small dimension
  • Affordable price

Applications

WDM, AWG, PLC components Insertion Loss, Return Loss test Coupler Insertion Loss, Return Loss test Fiber Sensor, Fiber Cable test PMD and PDL measurement, Fiber Optical, Telcom R & D lab test CWDM/LanWDM transceiver and receiver test

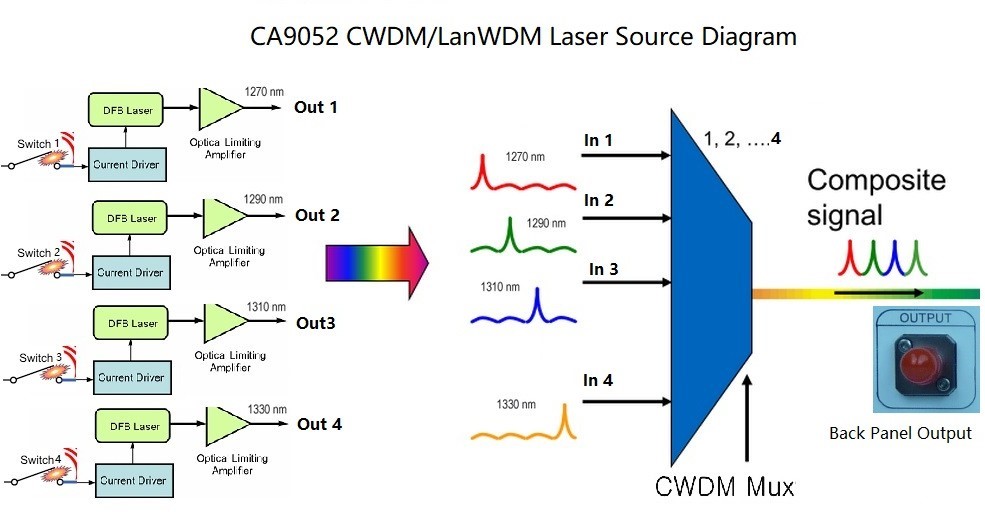

OPTICAL CONFIGURATION



Additional information

Weight 3 kg
Dimensions 23.5 × 31 × 4.5 cm
Model # CA9052
Operation Wavelength 1270/1290/1310/1330 nm or any 4 of following list wavelength

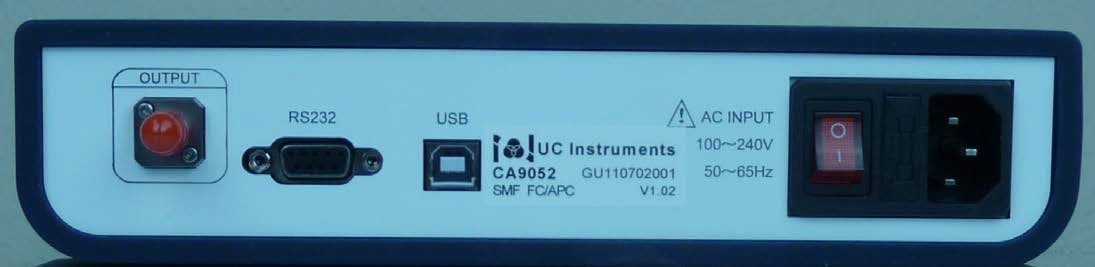

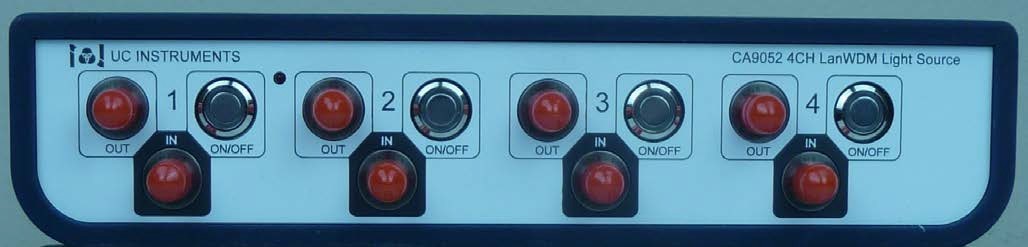

Any Four Channel Laser On/Off Manual Control 4 CH DFB Laser Max Output on Rear Panel

Optional Wavelength 850, 980, 1250, 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410,

1430, 1450,1470,1490, 1510, 1530,1550,1570, 1590, 1610, 1625 nm etc.

Wavelength Accuracy +/- 5 nm
Output Power >= 2.0 mW
Connector Type FC/APC (Other Adaptor Can Be Customized)
-3 dB Bandwidth < 0.1 nm
-20 dB Bandwidth < 0. 5 nm
Output Power Stability within 15 mins <= +/- 0.02
Output Power Stability within 24 hrs <= +/- 0.05
Operation Temperature 0+40
Storage Temperature -30+80
Side mode suppression ratio(dB) > 35 dB
Dimensions 235mm W×45mm H×310mmD
Weight 3.0 kg
