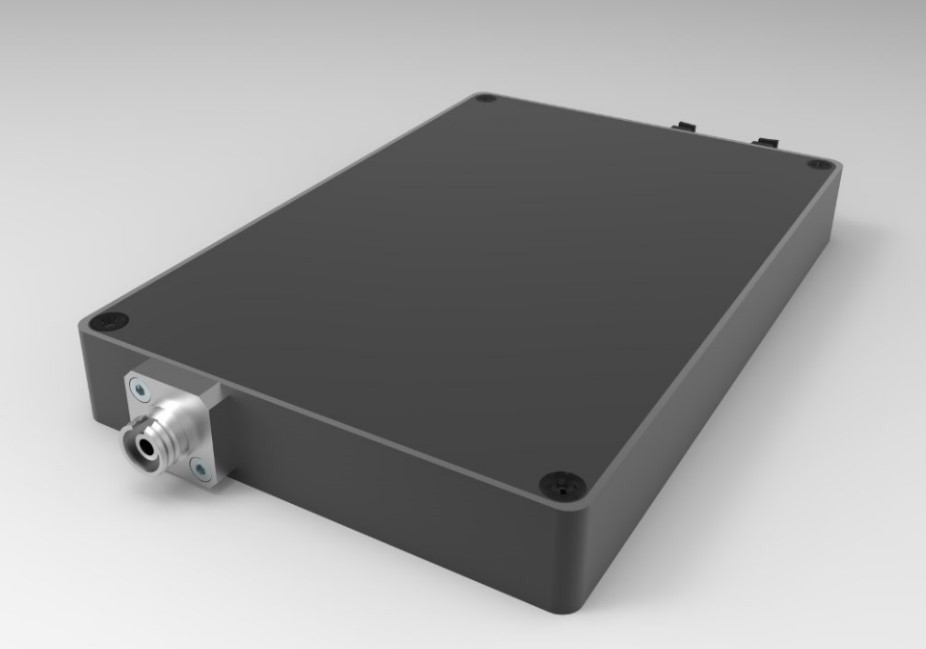

CA92050-KT 2 kHz Fast Swept Tunable Laser Source

CA92050-KT 2 kHz Fast Swept Tunable Laser Source

$9,520.00

  • Wavelength Range C-band
  • High Output Power
  • Low Power Consumption
  • Wide Operating Temperature Range
  • Fast Swept Speed
  • Simple Interface
  • High Stability
SKU: CA92050-KT Category:
Brands
Product price
Additional options total:
Order total:
View cart

Description

CA92050-KT 2 kHz Fast Swept Tunable Laser Source

Technical Specifications Ver 2.00 Nov., 2018

CA92050-KT  2 kHz Fast Swept Tunable Laser Source

The CA92050-KT 2 kHz fast swept tunable laser modules offer superior performance for the test of Fiber Vibration Sensing, DWDM components, AWG , WSS, OPM components, Fiber sensing( especially for vibration fiber sensing application) , optical amplifiers, and other general purpose of fiber optical test and measurement with high wavelength resolution applications.

Each of CA92050-KT tunable laser modules is connected to a PC with RS232 cable. It becomes a High Accuracy, High Power, Small Dimension, Fast Startup, Affordable Tunable Laser Source system. It provides C band tunable laser sources options. UC Instruments also provide modules control software. The module also can be integrated into customers’ products system with RS232 interface control.

The CA92050-KT swept lasers are widely deployed in FBG sensing systems and passive component test systems.

Key Features

  • Wavelength Range C-band
  • High Output Power
  • Low Power Consumption
  • Wide Operating Temperature Range
  • Fast Swept Speed
  • Simple Interface
  • High Stability

Applications

  • Fiber Grating Sensor Interrogator System
  • Optical Passive Components test system
  • Scanning Spectrometer
  • Laser Ranging

Vibration Fiber Sensing Test Data Sample (Cell Phone Ring Tone):





Additional information

Dimensions 11.8 × 15.6 × 7.2 cm
Model No. CA92050-KT
Wavelength Range 40 nm for C-band (From 1528 – 1568 nm)
Optical Power 20 mW
Resolution 1 GHz
Absolute Wavelength Accuracy +/-10 pm   Typ<5 pm
Relative Wavelength Accuracy +/-5 pm   Typ+/-2 pm
Wavelength Repeatability +/-2 pm   Typ+/-1 pm
Wavelength Stability( -5 to 55 ℃) <+/-2 pm
Sweep Speed 2KHz(Max)
Default Sweep Step 1 GHz
Power Stability +/- 0.05 dB
Spectral Flatness <0.5 dB
SMSR >40 dB
RIN < -135 dB/Hz
Power Supply +5 V / 3 A
Linewidth <5 MHz   Typ 1 MHz
Trigger Interface LVTTL
Communication Interface RS232 or TTL
Dimension 118mm x 72mm x 15.6mm
Fiber Adaptor FC/UPC
Working Temperature Range -10 to 55 ℃
