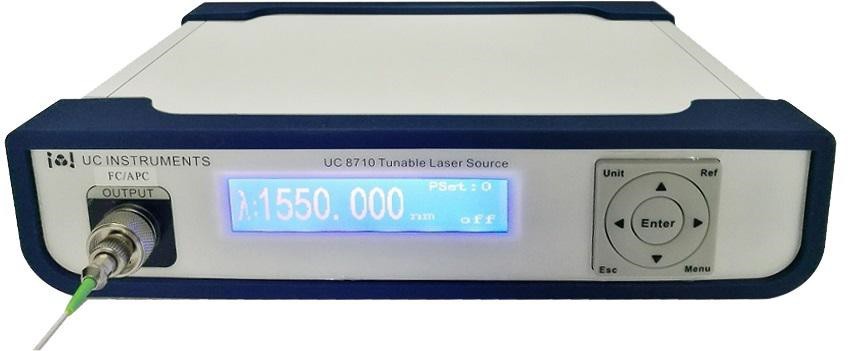

Tunable Laser

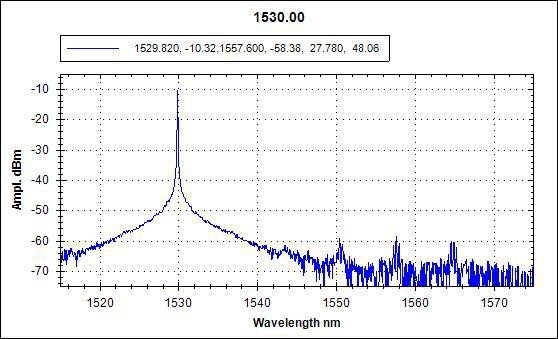

Wave
Control Interface1

UC8712C PC Control Tunable Laser Source Modules with Swept Function

UC8711C PC Control Tunable Laser Source Modules
CX9812-O (1250 ~ 1350 nm) O-Band Tunable Lasers Source
  • High wavelength accuracy
  • Continuous wavelength tunability
  • High power laser source
  • Rapid tuning speed
  • Fast startup
  • Compact size
  • Competitive price
SKU: UC8712C Category:
Brands:
Brands
Request a Quote

Description

UC8712C PC Control Tunable Laser Source Modules with Swept Function

UC8712C Tunable Laser Source Modules with Swept Function

 The UC8712C tunable laser modules offer superior performance in testing DWDM components, AWG & PLC components, and optical amplifiers, and performing other general- purpose fiber optical test and measurement applications particularly in fiber grating sensor fast sweep testing.

Each of the three tunable laser modules can be connected to a PC through a USB cable, comprising a high accuracy, high power, compact dimension, fast startup, affordable tunable laser source system. This system provides C band tunable laser sources options. These modules can  be integrated into customers’ products system with RS232 interface control and output trig BNC port. UC Instruments also provide modules control software.

Features

  • High wavelength accuracy
  • Continuous wavelength tunability
  • High power laser source
  • Rapid tuning speed
  • Fast startup
  • Compact size
  • Competitive price

Applications

  • WDM, GFF, isolator, AWG, PLC components tests
  • Fiber sensor fast sweep tests
  • Fiber sensor/sensor array developments
  • PMD and PDL measurements
  • Fiber optical, telecom R&D lab tests and system integration

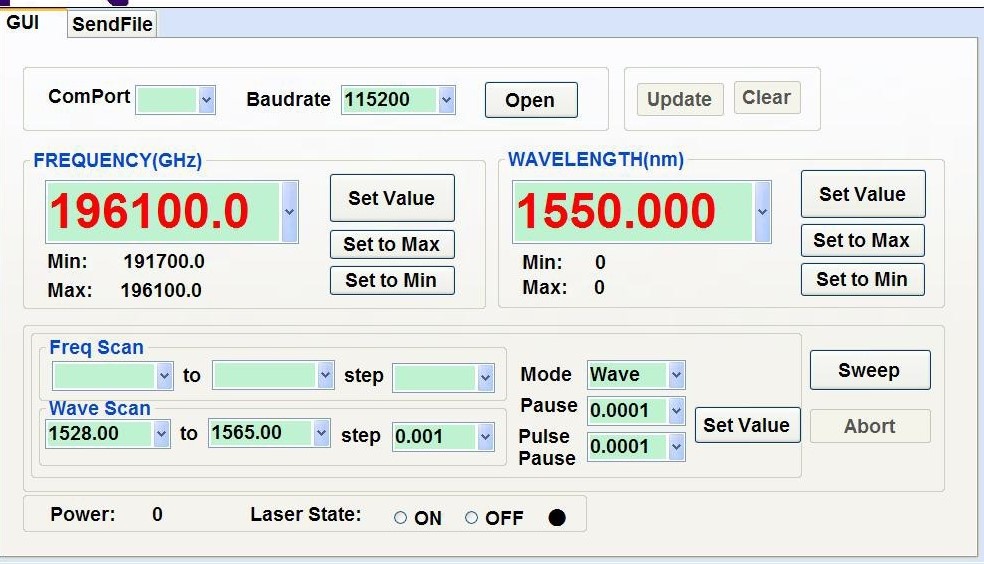

UC8712 PC Control Interface



Additional information

Weight 4 kg
Dimensions 23.5 × 31 × 4.5 cm
Model # UC8712C UC8712L UC8712CL
Wavelength range 1525.00 to 1566.00 nm 1566.00 to 1610.00 nm 1525.00 to 1610.00 nm
Output Power >= 10 dBm >= 8 dBm >= 5 dBm
Wavelength resolution 1.0 pm
Absolute wavelength accuracy +/- 10 pm, typ.. < 5 pm
Relative wavelength accuracy +/- 5 pm, Typ. +/- 2 pm
Wavelength repeatability +/- 2 pm, typ. +/- 1  pm
Wavelength stability (typ., 24 hrs at constant temperature <= +/-  2 pm
Tuning speed <= 2 ms per step
Power stability +/- 0.05 dB, 1 hour. Typ., +/- 0.1 dB, 24 hours.
Power repeatability +/- 0.05 dB
Power linearity +/- 0.3 dB
Power flatness versus wavelength 0.3 dB typ., 0.5 dB max.
Side-mode Suppression ratio >= 45 dBc
Relative intensity noise (RIN. Typ.) < -135 dB
Output optical interface PM,  FC/PC connector
Interface USB or RS232(Optional)
Output trig port BNC trig
Power 3.3 V; 3 A
Dimensions 235mm W, 45mm H, 310 mm D
Weight 4.0 kg
