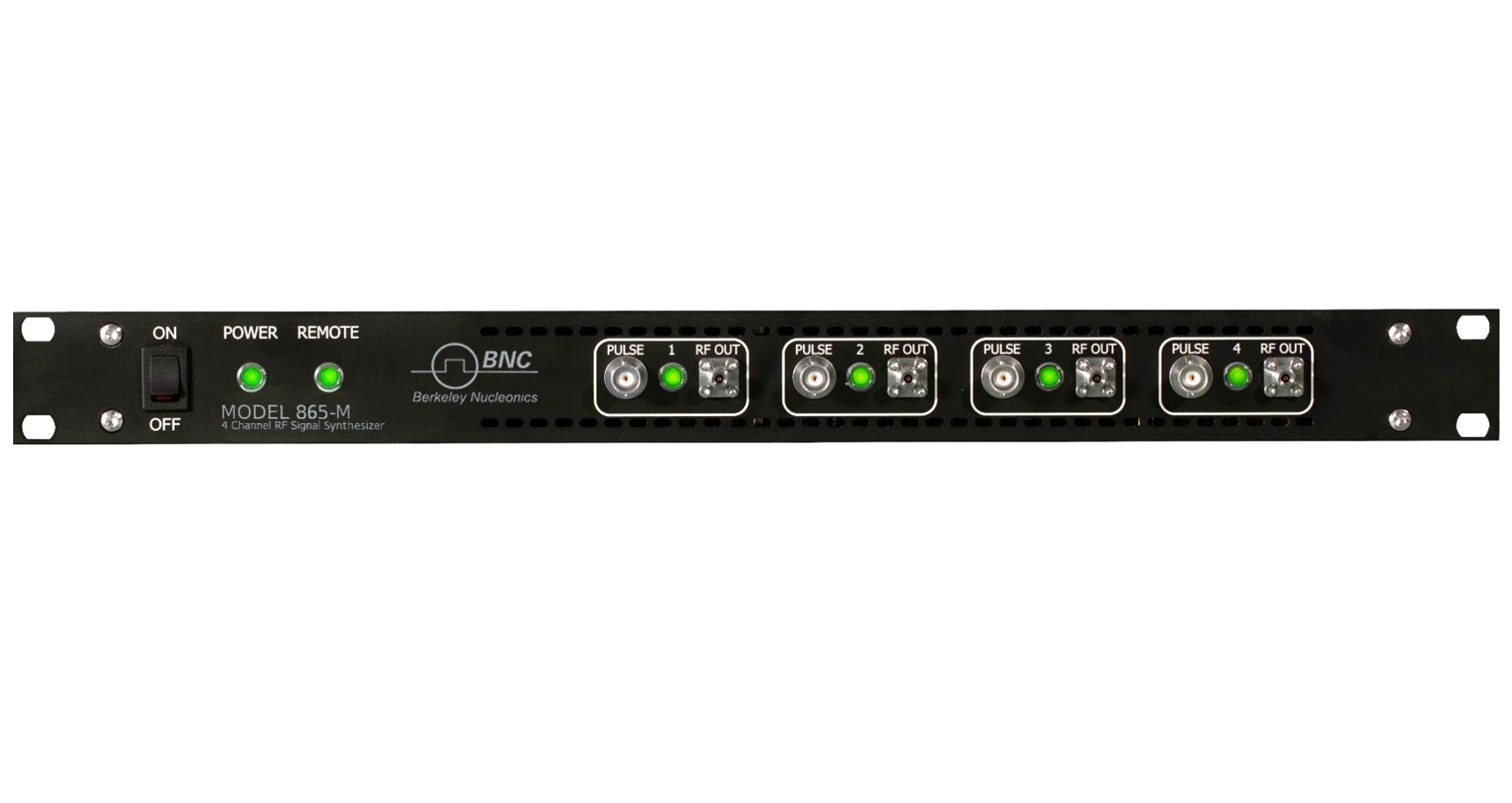

Model 865B-M-40-X | 100 kHz to 40 GHz Multi-Channel Low Noise Wideband Synthesizer

Applications

Features

  • Automated Test Environment
  • LO for frequency converters
  • Telecom / SatCom
  • Quantum Computers
  • Highly Phase Synchronous and Phase-Coherent switching option
  • Fast switching down to 20 µs
  • FM, PM, Pulse
  • Internal OCXO, External variable clock reference

pdf  Product Datasheets



SKU: N/A Category:
Brands
Clear

Description

Model 865B-M-40-X | 100 kHz to 40 GHzMulti-Channel Low Noise Wideband Synthesizer

The Model 865B-M-40-X is a multi-channel wideband low phase-noise synthesizer settable from 100 kHz to 43.5 GHz. The unit is available with 2, or 4 fully independently configurable outputs. For each channel, frequency, power, phase, and modulation can be set. The settable output power range of the 865B-M-40-X is from -5 to +25 dBm.

Model 865B-M-40-X comes with an intuitive Graphical User Interface and also compatible with C++, Python, Java, and other programming languages.

OVERVIEW

Applications

Features

  • Automated Test Environment
  • LO for frequency converters
  • Telecom / SatCom
  • Quantum Computers
  • Highly Phase Synchronous and Phase-Coherent switching option
  • Fast switching down to 20 µs
  • FM, PM, Pulse
  • Internal OCXO, External variable clock reference



SPECIFICATIONS
Channels 1, 2, 3, or 4
Frequency Range: 100 kHz to 40 GHz (settable to 43.5 GHz)
Resolution: 0.001 Hz
Accuracy: 0.1 ppm
Output Power  -10 to +25 dBm
Switching Speed  500µs (20µs with option FS)
Phase Noise At 1 GHz at 1 kHz: -132 dBc/Hz
at 20 kHz-145 dBc/Hz
at 10 MHz: -155 dBc/Hc

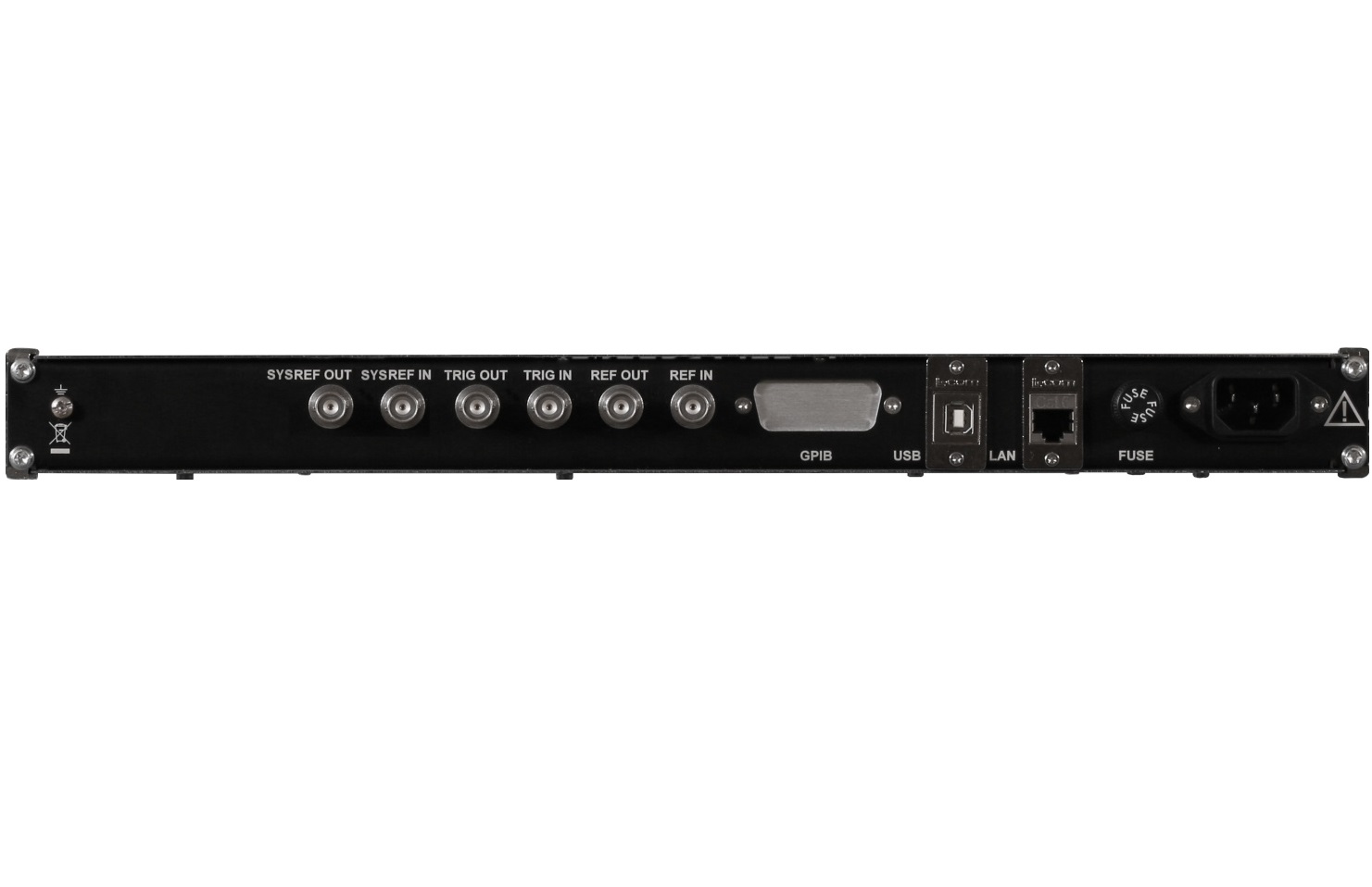

Remote Control (SCPI v1999)  Ethernet, USB, GPIB (optional)
Modulation  Pulse
Sweeps  List, Frequency
Dimensions (W x L x H)
Weight
16.93 x 18.11 x 1.69in [430 x 460 x 43 mm]
22 lbs [10 kg]



Additional information

865-M-40

865B-M-40 / 40 GHz Synthesizer, flange-mount module, 865B-M-40-1 / 1 channel 40 / GHz Synthesizer, 19" 1U rack-mount module, 865B-M-40-2 / 2 channel 40 GHz Synthesizer, 19" 1U rack-mount module, 865B-M-40-3 / 3 channel 40 GHz Synthesizer, 19" 1U rack-mount module, 865B-M-40-4 / 4 channel 40 GHz Synthesizer, 19" 1U rack-mount module
