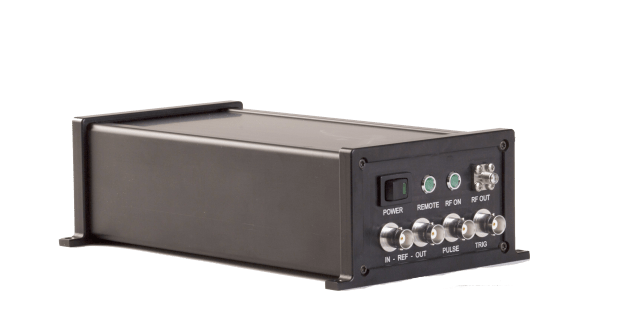

865-M-40 0.01 to 40 GHz Low Noise Synthesizer

865-M-40 0.01 to 40 GHz Low Noise Synthesizer

$23,485.00

  • ATE
  • LO for frequency converters
  • Telecom / SatCom
  • Low phase noise
  • Fast switching down to 20 µs
  • FM, Chirps, Pulse
  • Internal OCXO, external variable reference
  • Single DC supply



Options

+ $4,500.00

Ultra-Low phase noise - price per channel

+ $5,000.00

Ultra-fast 30 µs switching speed - price per channel

Product price
Additional options total:
Order total:
  • Description
  • Additional information
  • SPECIFICATIONS
  • DATASHEET

Description

865-M-40 0.01 to 40 GHz Low Noise Synthesizer

The 865-M series consists of low phase-noise synthesizers operating up to 40 GHz. The modules have an MHz frequency resolution and use a high-stability internal reference. The internal reference can be phase-locked to a programmable external reference. The modules have USB and LAN interfaces and can be controlled using SCPI 1999 command set. Operated with an external DC supply, they consume less typically than 10 W power.

OVERVIEW

Applications

Features

  • ATE
  • LO for frequency converters
  • Telecom / SatCom
  • Low phase noise
  • Fast switching down to 20 µs
  • FM, Chirps, Pulse
  • Internal OCXO, external variable reference
  • Single DC supply



Additional information

Weight1 kg
Dimensions27 × 10.5 × 6 cm

QUICK SPECS

Number of Channels  1, 2, 4
FrequencyRange: 10 MHz to 40 GHz
Resolution: 0.001 Hz
Accuracy: 0.1 ppm
Output PowerSettable -5 to +20 dBm
Switching Speed20 µs
Phase Noise (1 GHz CW)​1 kHz offset: -132 dBc/Hz
100 kHz offset: -145 dBc/Hz
10 MHz offset: -155 dBc/Hz
Remote Control  (SCPI v1999)​Ethernet, USB (SCPI v1999)
ModulationPulse, Chirp
Sweeps​List, Frequency
Dimensions (W x L x H), Weight10.63" x 4.13" x 2.36 "​ [270 x 105 x 60 mm]
< 2.1 lbs [1.0 kg]
