J0GSAP8001 Spectrum Compact kit E-band 70 – 87 GHz.

4024G spectrum analyzer (9kHz～44GHz)
J0GSAP6001 Spectrum Compact kit V-band 56 – 67 GHz range
  • -90 dBm leading displayed average noise level (DANL) at 10MHz RBW
  • Ready to go solution for V-band link troubleshooting, maintenance and installation
  • Perfect tool for interference detection on installed paths
  • Aluminium enclousure for better EMC protection, IP54 class



  Spectrum Compact Series



SKU: J0GSAP8001 Category: Tags: , , , , , , , , ,
Brands:
Brands
Request a Quote

Description

J0GSAP8001 Spectrum Compact kit E-band 70 – 87 GHz.

J0GSAP8001 kit consists of: E-band SC; SAF E-band antenna; Universal power supply 5.9 VDC; Micro USB to 3.5 mm cable for audio; Micro USB cable for data; Water and shockproof case; Lanyard.

J0SSAP80, J0S80ASA01, J0AB4505i2, J0ACUA35, J0SPAC07, J0APAC21, J0ACUB02

J0SSAP80 Spectrum Compact E-band 70 – 87 GHz

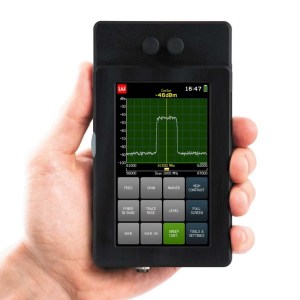

Spectrum Compact E-band and V-band units are an ultra-light and easy to use measurement solution for the 56 – 67 GHz and 70 – 87 GHz microwave frequency bands. These battery powered devices do not require external down-converters, and are a must-have tool for any field engineer performing V-band or E-band equipment installation, link troubleshooting, site planning and maintenance.

Spectrum Compact E-band

The analyzers utilize a resistive touch screen for ease of use in the field, allowing the engineer to wear gloves when using the device. Furthermore, the high sensitivity and low noise floor make it possible to detect even exceptionally weak signals. Spectrum Compact can also be used for high precision detection of existing interference on installed paths or available radio channels. Data logging of all spectrum scans is available on every Spectrum Compact device, and enhanced data processing and analysis is provided by SAF Tehnika designed free PC software.





P/N





J0SSAP33

 J0SSAP10 J0SSAP11 J0SSAP12 J0SSAP13



J0SSAP14





J0SSAP60





J0SSAP80
Frequency range 0.300 – 3.000 GHz 2.000 – 8.000 GHz;

5.925 – 12.000 GHz;

10.000 – 18.000 GHz;

17.000 – 24.300 GHz

 24.000 – 40.000 GHz 56.000 – 67.000 GHz 70.000 – 87.000 GHz
Input power range -125 dBm to +20 dBm -105 to -40 dBm -105 to -40 dBm -90 to -40 dBm -90 to -30 dBm
Max input power 30 dBm 0 dBm 0 dBm 0 dBm 0 dBm
RBW 30, 100, 300 kHz 1 MHz 1 MHz 10 MHz 10 MHz
VBW 3, 10, 30, 100, 300 kHz 300 kHz 300 kHz 300 kHz 300 kHz
Min. Span 3 MHz 100 MHz 100 MHz 1 GHz 1 GHz
Max. Span full bandwidth full bandwidth full bandwidth full bandwidth full bandwidth
Sweep speed 0.5s @ 30 MHz Span 0.5s @ Min. Span 0.5s @ Min. Span 0.5s @ 1 GHz Span 0.5s @ 1 GHz Span
Accuracy* +/- 3 dB +/- 1 dB +/- 1 dB +/- 1 dB +/- 1 dB
Input 50 ohm SMA (f) 50 ohm SMA (f) 50 ohm 2.92 mm (f) WR 15 WR 12
Interface USB Type-C mini USB 2.0 (1.1) mini USB 2.0 (1.1) mini USB 2.0 (1.1) mini USB 2.0 (1.1)
Battery life up to 3h up to 4h up to 4h up to 3h up to 3h
Operating -15ºC to +40ºC / -15ºC to +55ºC / -15ºC to +55ºC / -15ºC to +55ºC / -15ºC to +55ºC /
temperature 5ºF to 104ºF 5ºF to 131ºF 5ºF to 131ºF 5ºF to 131ºF 5ºF to 131ºF
Dimensions 135 x 83 x 34 mm /

5.31 x 3.27 x 1.34 in

 128 x 81 x 24 mm /

5.04 x 3.2 x 0.94 in

 128 x 81 x 24 mm /

5.04 x 3.2 x 0.94 in

 147 x 83 x 34 mm /

5.79 x 3.27 x 1.34 in

 147 x 83 x 34 mm /

5.79 x 3.27 x 1.34 in
Weight 0.5 kg / 17.6 oz 0.3 kg / 10.6 oz 0.4 kg / 14.11 oz 0.57 kg / 20.11 oz 0.57 kg / 20.11 oz

Guaranteed at 21ºC/70ºF CW signal
