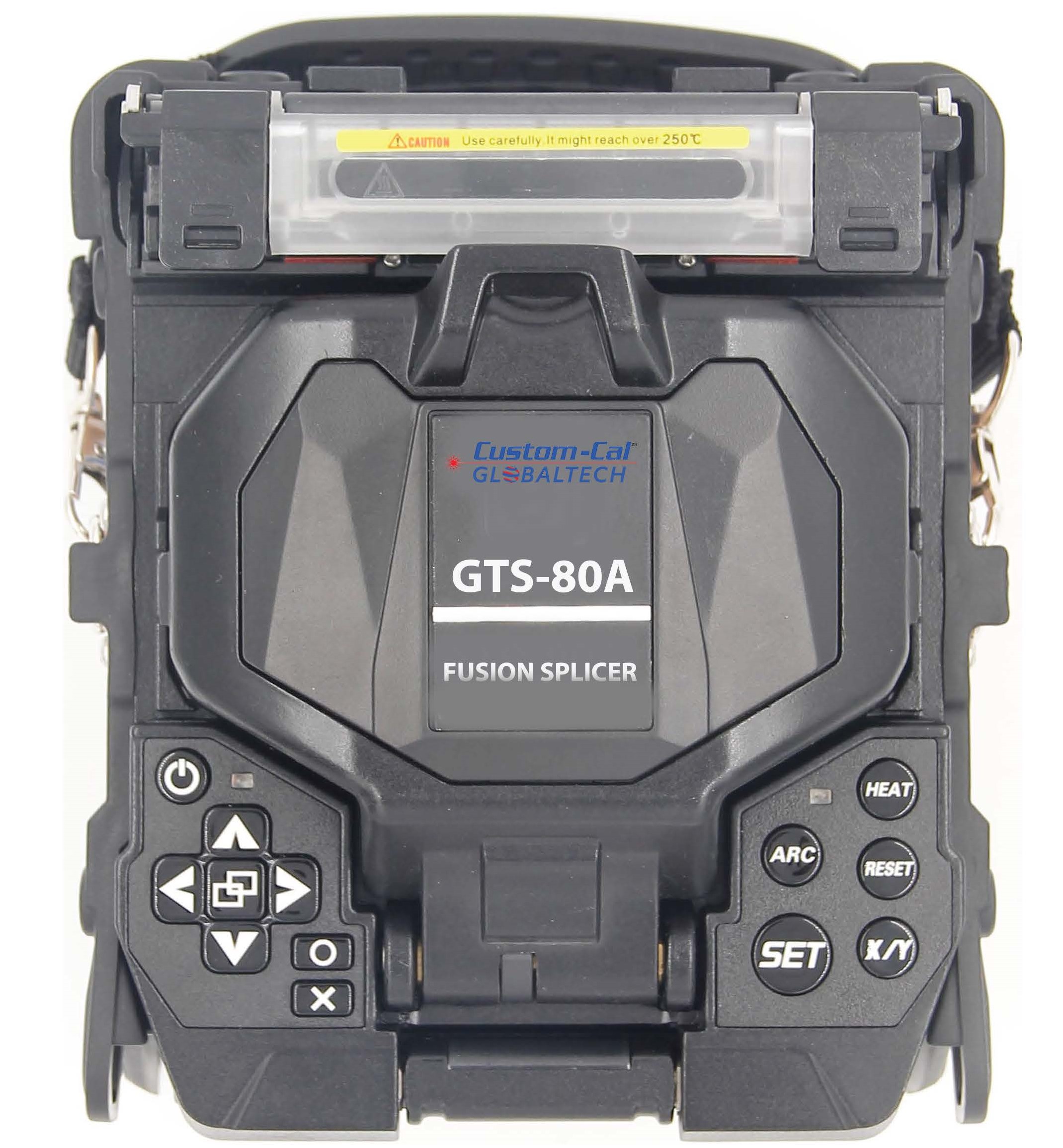

GTS-80A Single Fiber Fusion Splicer
Core Alignment + Integrated V-groove Deck
- Integrated V-groove deck assures high reliability and vibration-proof
- Refreshing User Interface
- 4.3-inch high-resolution touch screen
- High power LED lights for dark environment
- 5200mAh battery, more than 280 cycles of splicing and heating
- Description
- Additional information
Description
GTS-80A Single Fiber Fusion Splicer
Core Alignment + Integrated V-groove Deck
- Integrated V-groove deck assures high reliability and vibration-proof
- Refreshing User Interface
- 4.3-inch high-resolution touch screen
- High power LED lights for dark environment
- 5200mAh battery, more than 280 cycles of splicing and heating
Specifications
| Fiber Alignment Method | Core to core alignment, 4 motors | Illumination | 3 high power LED white lights |
| Fiber Count | Single fiber | Display | Forward/backward switch (button), 4.3 inches 480*272 high resolution color LCD touch screen |
| Applicable Fiber | SMF (G.652/657), MMF (G.651), DSF (G.653), NZDSF (G.655) | Fiber Image Magnification | X/Y (280X magnification), or both X and Y simultaneously (160X magnification) |
| Fiber Diameter | 250~300um, 900um, 2.0mm, 3.0mm, 2*3mm flat drop cable | Power Supply | 100~240VAC, 50/60Hz; 12~15VDC |
| Fiber Cleaved Length | 8~16mm (coating diameter: 125~1000um) | Battery Capacity | 5200mAh |
| Splicing Modes | Total 41 splice modes, can be added by user | Typical Heating Times | 280 cycles |
| Splicing Time | 8sec SM FAST | Electrode Life | 3,000 ~ 3600 splices |
| Typical Splice Loss | 0.02dB (SM), 0.01dB (MM), 0.05dB (DSF) and 0.05dB (NZDS) | Adaptive discharge | Automatic ARC calibration according to air pressure and temperature |
| Estimated Splice Loss | yes | Terminal | Mini USB 2.0 |
| Return Loss | ≥60dB | Operating Condition | Altitude: 0~5,000m, relative humidity: 0~95%, temperature:
-10~50℃ , Max. wind velocity: 15m/s |
| Typical Heating Time | 15s with 60mm sleeve | Storage Environment | Relative humidity: 0~95%, temperature: -40~80℃ |
| Protective Sleeve Length | 20~60mm | Dimension (W*L*H) | 140*165*148mm (with rubber housing); 130*165*138mm (without rubber housing) |
| Tension Test | 1.5~2.0N | Weight | Splicer weight: 2.28kg (with rubber housing);
1.98kg (without rubber housing) |
| Storage of Splice Results | 1,000 latest records |
Package
| 1 | Fusion splicer | GTS-80A | 1pc |
| 2 | Fiber cleaver | ATC-6 | 1pc |
| 3 | Battery | TPW-52 | 1pc |
| 4 | Power adapter | DSS28-1262000 | 1pc |
|
5 |
Power cord |
APC-XX
XX: 1=US/JP;2=UK;3=EU; 4=AU |
1pc |
| 6 | Spare electrodes | ATE-1 | 1 pair |
| 7 | Cooling tray | ATT-1 | 1pc |
| 8 | Alcohol bottle | AB-10 | 1pc |
| 9 | Brush | BR-01 | 1pc |
| 10 | Phillips screwdriver | PS-01 | 1pc |
| 11 | Manual | ATM-80A | 1pc |
| 12 | Carrying case | CC-01 | 1pc |
| 13 | Carrying case strap | CCS-01 | 1pc |
| 14 | Fiber optic stripper (optional) | CFS-2 | 1pc |
| 15 | Drop cable stripper (optional) | S30 | 1pc |
| 16 | Kevlar scissors (optional) | FKS-1 | 1 pair |
Additional information
| Weight | 2.28 kg |
|---|---|
| Dimensions | 14.0 × 16.5 × 14.8 cm |
