6471A FTTH Optical Fiber Fusion Splicer Kit
AV6471A FTTH optical fiber fusion splicer consist of,
| No. | Description | Remark |
| 1 | AV6471A FTTH fusion splicer | 1 set |
| 2 | FH-71A-IN-L | Left bow-type holder |
| 3 | FH-71A-IN-R | Right bow-type holder |
| 4 | FH-71A-250-L | Left ordinary coated fiber holder |
| 5 | FH-71A-250-R | Right ordinary coated fiber holder |
| 6 | FH-71A-3.0-R | Right jumper holder |
| 7 | Power adapter | 1pc |
| 8 | AC power cord | 1 pc |
| 9 | Spare electrode | 1 pair |
| 10 | Rubber suction bulb | 1 pc |
| 11 | Bottle with pump | 1 pc |
| 12 | Cooling tray | 1 pc |
| 13 | User manual CD | 1 pc |
| 14 | Carrying case | 1 pc |
- Description
- Additional information
- Technical Specifications:
- Ordering Information:
Description

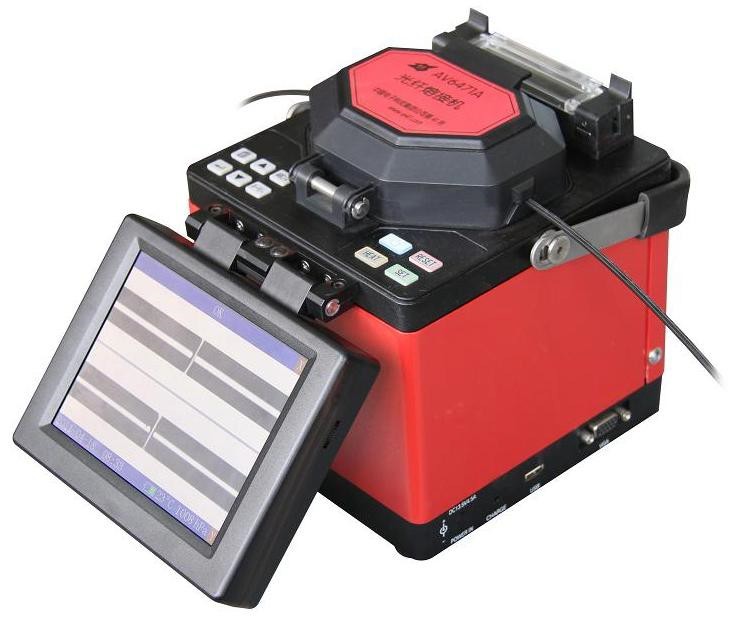

AV6471A FTTH Optical Fiber Fusion Splicer Kit
AV6471A is a newly designed multifunctional optical fiber fusion splicer, which is specially used for fiber splicing under FTTH environment. With compact structure and exquisite design, it is easy to operate even in confined space. The optical imaging system and full-digital design make the image display clear and delicate. The embedded real-time operating system provides friendly operation interface and multiple functions. The built-in high capacity lithium battery guarantees long-time field operation. The real-time environment (temperature and air pressure) compensation system greatly improves its ability against the hostile external environment, and thus ensures the consistency of low-loss splicing in different environments.
Main Features:
- Various dedicated holders; applicable to FTTH environment, as well as ordinary optical fiber projects.
- Precise alignment of fiber cores to ensure the low-loss splicing
- 9 seconds for splicing, 30 seconds for pyrocondensation
- X/Y axis simultaneous display, 304 times of magnification
- Can be set: to automatically start splicing once closing the windshield, and automatically start pyrocondesantion once closing the heating cover
- Real-time discharging correction, no need to adjust the parameters
- Long lifetime of electrode: discharging up to 4000 times
- USB and VGA ports
- 7inch digital HD LCD
- Built-in high capability lithium battery: support 320 times of splicing and heating
- Real-time accurate display of remaining battery capability
- Software upgrading via U disk
Multiple dedicated holders
AV6471A FTTH fusion splicer is improved on the basis of AV6471 to be suitable for FTTH environment. Besides all original functions of AV6471, AV6471A is also capable of splicing and heating among various optical fibers like bow-type, jumper,

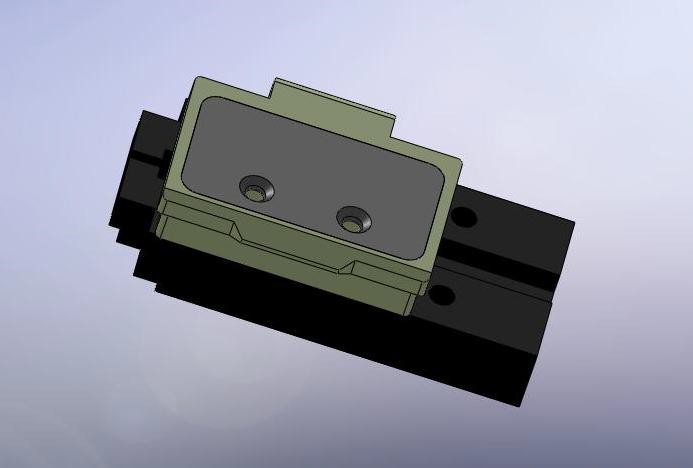

Bow-type holder Jumper holder
SC connector holder
HD optical image acquisition system
- HD dual-separation fiber aligner
- High-performance low-noise CMOS image sensor
- Image pixel: 640*480, 60fps
- Image information output via VGA port
Real-time discharging correction system
- High-performance discharging electrode
- AC/DC mixed discharging technology
- Current feedback and environment compensation
- Low discharging loss, thus prolong the battery life
Software automatic upgrading via U disk
AV6471A FTTH optical fiber fusion splicer provides the USB interface for software intelligent upgraing and data backup. The software upgrading and maintenance can be completed vias U disk, which is easy and convenient.
Typical Applications:
FTTH environment and ordinary optical fiber projects
As the producer of the first domestic optical fiber fusion splicer, CETC 41st has over 20 years of experience in fusion splicer development and application, and well knows the requirements of
high-quality and high-efficiency fiber splicing. AV6471A is a newly designed optical fiber fusion splicer which is compact, easy to operate, and convenient to carry. The structure design conforms to the operating principles of ergonomics, and it can easily conduct the splicing even when the fiber is quite short.
Besides FTTH environment, AV6471A FTTH optical fiber fusion splicer can also be applied in engineering construction, line maintenance, and emergency repairing of all optical cable lines, production & test of optical fiber components, as well as research and teaching.
Additional information
| Weight | 2.7 kg |
|---|---|
| Dimensions | 16 × 15 × 14 cm |
| Fiber type | SM, MM, DS, NZDS | ||||
| Splice loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS) | ||||
| Return loss | Better than 60dB | ||||
| Operation mode | Full-automatic, semi-automatic, manual | ||||
| Fiber alignment | Advanced PAS aligning | ||||
| Applicable fibers | Bow-type, SC connector (optional) and 0.25mm, 0.9mm ordinary optical
fibers |
||||
| Cleave length | 8～16mm | ||||
| Magnification | 304/152 times | ||||
| Display | High-performance 5.7 inch LCD; provide clear and exquisite image
display |
||||
| Tension test | Standard 2N (optional) | ||||
| Pyrocondensation
tube |
60mm, 40mm and a series of pyrocondensation tubes | ||||
| Battery capability | Typical 320 splices; charging time: about 3.5 hours (available for use
during charging) |
||||
| Battery life | 300～500 times of charging, can be exchanged by users | ||||
| Electrode life | Typical value: 4000 times; can be exchanged by users | ||||
| Construction
lighting |
Built-in high-brightness, wide-range light, convenient for night operation. | ||||
| Power supply | Built-in lithium battery: 11.1V; external adapter, input: AC100-240V,
output: DC13.5V/4.5A |
||||
| Operating
environment |
Temperature: -10℃～+50℃; humidity: 0～95%RH (non-condensing)
Altitude height: 0～5000m |
||||
| Weight | 2.7kg (without battery), 3.2kg (with battery) | ||||
| Operation interface | Chinese/English | ||||
| Dimensions | W×H×D=150mm×140mm×160mm | ||||
| Max. power | ≤20W (without charging); ≤55W (with charging) | ||||
|
DC internal power |
Service time (23ºC±2ºC ) | ≥4h (continuous working) | |||
| ≥10h (standby state) | |||||
| Charging
time |
≤3.5h (power off) | ||||
| ≤4.5h (power on) | |||||
|
DC external power(external po wer adapter) |
Input | 100~240V, 50/60Hz | |||
| Output | 13~14V, ≥4.4A, power plug center is positive pole | ||||
| Leakage
current |
When the input voltage is 220V, leakage current ≤3.5mA | ||||
| Interface function | USB | Storage
record |
No U
disk |
“Please insert a U disk” prompt | |
| With U disk | To export the record. There will be a prompt of “please pull out the U disk”
after finished. |
|||||
|
Software upgrading |
With U disk, during the software upgrading, there will be a progress bar, and the upgrading will be completed in few seconds. Pull out the U disk, and re-start the instrument, the software version showed
on the interface should be the same as in the U disk. |
|||||
| VGA | To link the external monitor via VGA port, so that the monitor can
display the content on the fusion splicer screen. |
|||||
| Automatic splicing | Can complete the gap setting, alignment and discharge splicing of two fibers as well as the display of estimated
loss. |
|||||
|
Tension test |
During operation, the tension (1.96N) test will be automatically started once the splicing is finished. It will
display “normal” once the tension test is finished. |
|||||
|
Automatic heating |
When starting up, the heating function is automatically activated with no need to press “heating” key. The heating indicator lights up and complete the pyrocondensation of a
60mm standard pyrocondensation tube. |
|||||
| Performance indexes | Splicing time | Splicing time≤9s | ||||
| Heating time | 40mm pyrocondensation tube | Heating time≤30s | ||||
| 60mm pyrocondensation tube | Heating time≤35s | |||||
Main unit: AV6471A FTTH optical fiber fusion splicer
Standard configuration:
| No. | Description | Remark |
| 1 | AV6471A FTTH fusion splicer | 1 set |
| 2 | FH-71A-IN-L | Left bow-type holder |
| 3 | FH-71A-IN-R | Right bow-type holder |
| 4 | FH-71A-250-L | Left ordinary coated fiber
holder |
| 5 | FH-71A-250-R | Right ordinary coated fiber
holder |
| 6 | FH-71A-3.0-R | Right jumper holder |
| 7 | Power adapter | 1pc |
| 8 | AC power cord | 1 pc |
| 9 | Spare electrode | 1 pair |
| 10 | Rubber suction bulb | 1 pc |
| 11 | Bottle with pump | 1 pc |
| 12 | Cooling tray | 1 pc |
| 13 | User manual CD | 1 pc |
| 14 | Carrying case | 1 pc |
Options:
| Option No. | Description | Function | Remark |
| AV6471A-001 | Fiber cleaver AV33012 | Fiber cleaving | |
| AV6471A-002 | Miller stripper CFS-2 | Bare fiber stripping | |
| AV6471A-003 | Bow-type stripper | Bow-type fiber
stripping |
|
| AV6471A-004 | Right SC connector holder
FH-71A-SC-R |
SC connector fiber
fusion splicing |
|
| AV6471A-005 | Heater cushion HC-71-1 | Used for different types
of fibers |
|
| AV6471A-006 | Lithium battery HYLB-1173 | Power supply |
Foreign instrument to be substituted:
The foreign instrument to be substituted by AV6471A: Fujikura FSM-60S
