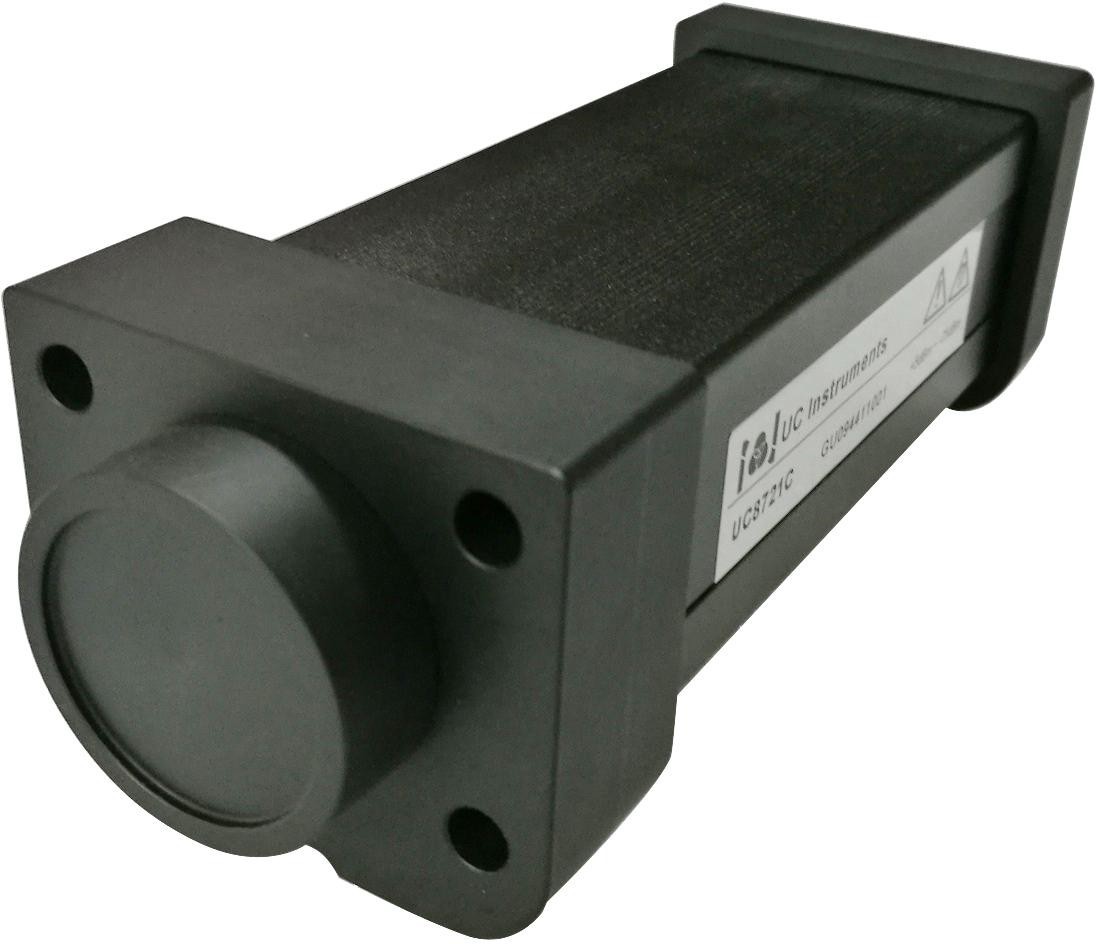

UC8721C USB Fast Sample Optical Power Meter Head

UC8721C USB Fast Sample Optical Power Meter Head

$2,366.00

  • High performance
  • Quick startup
  • Difference power range and difference channel number available
  • Small dimension
  • Affordable price
SKU: UC8721C Category:
Brands
Product price
Additional options total:
Order total:
View cart

Description

UC8721C USB Fast Sample Optical Power Meter Head

Technical Specifications V1.02 May, 2018

UC8712C USB Fast Sample Optical Power Meter Head

The UC8712C USB fast sample optical power meter head offer superior performance for the test of DWDM components, AWG & PLC components, optical amplifiers, and other general purpose of fiber optical test and measurement applications. It is special design for volume production line application.

UC8712C fast sample optical power meter head is a High Performance, Small Dimension, Fast Startup, Affordable Optical Power Meter test system. It provides low power, high power, single channel and dual channel optical power meter modules options. UC Instruments also can provide high channel count solution up to 16 channels.

Features

  • High performance
  • Quick startup
  • Difference power range and difference channel number available
  • Small dimension
  • Affordable price

Applications

  • WDM, AWG, PLC components Insertion Loss, Return Loss test
  • Fiber Sensor , Fiber Cable test
  • PMD and PDL measurement
  • Fiber Optical , Telcom R & D lab test

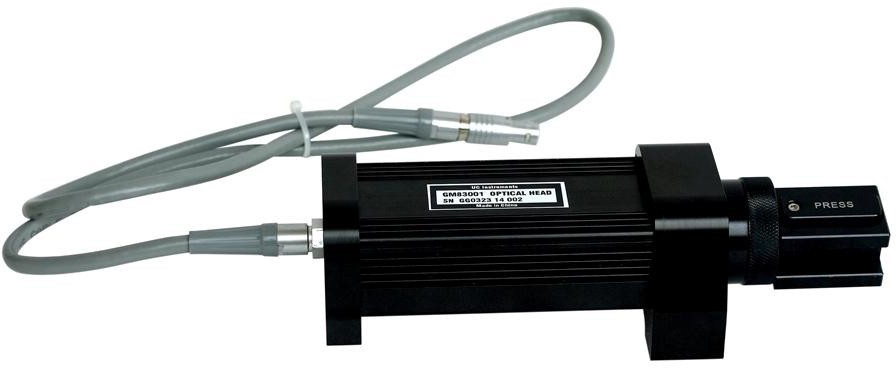

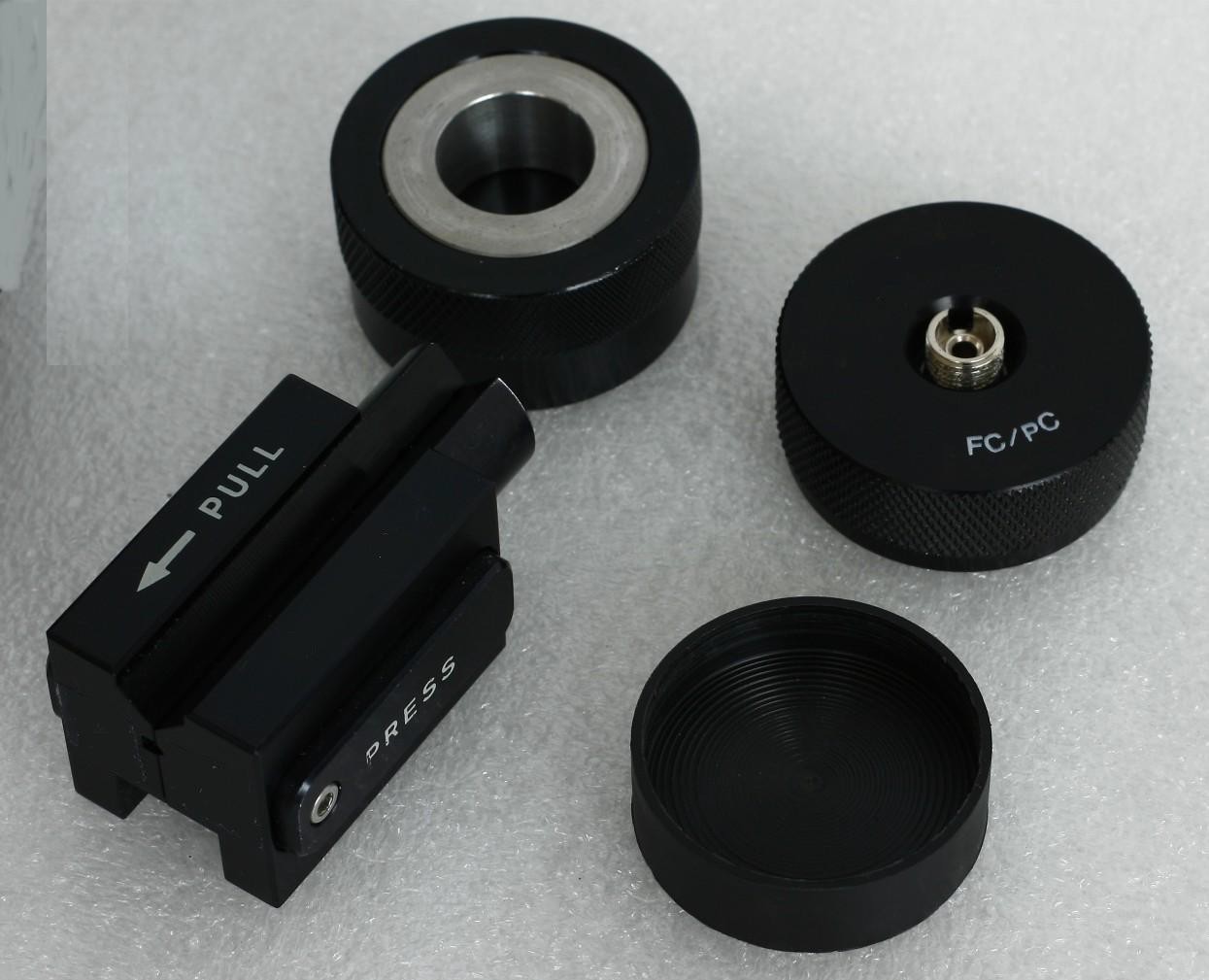

Variable Power Meter Headers and Adaptors Available

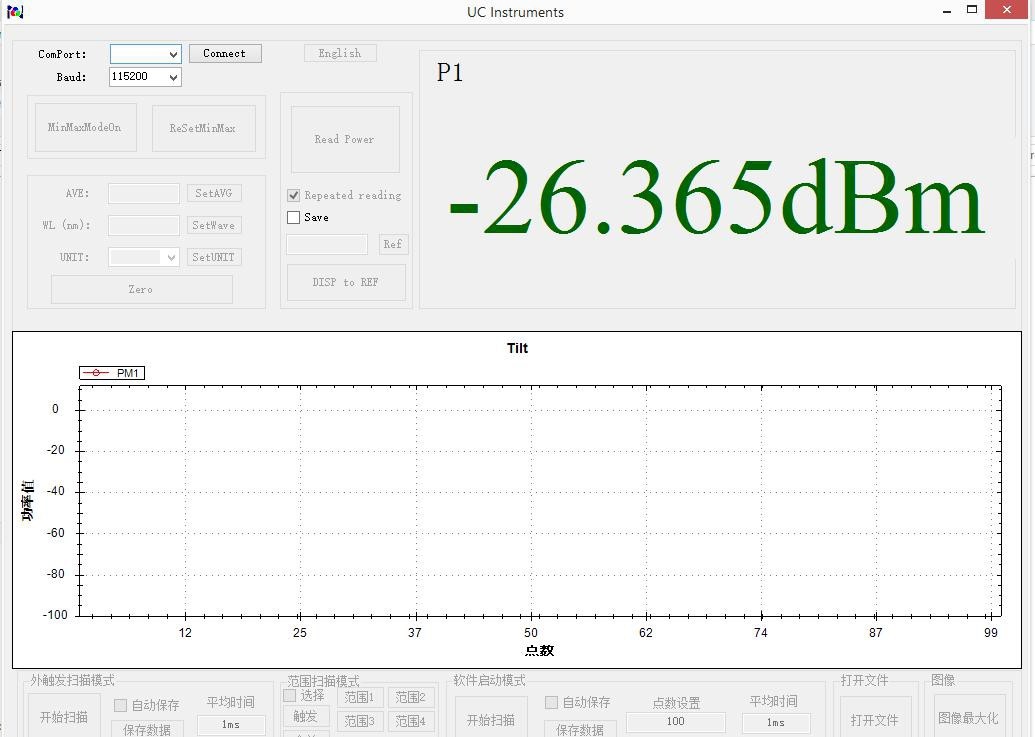

UC8721 Computer GUI



Additional information

Weight 0.5 kg
Dimensions 6.3 × 15 × 4.3 cm
Model # UC8721C
Wavelength Range 850 ~ 1700 nm
Power Range + 5  ~ -80 dBm
Application Fiber Type Standard SM and MM up to 62.5 um core size
Uncertainty (accuracy) at reference condition +/- 4% (1200 nm ~ 1610 nm)
Relative Uncertainty (accuracy) at

reference condition

< 0.02 dB Typical
Linearity (power) <= +/- 0.06 dB (1200 nm ~ 1610 nm, +20 ~ -40 dBm)
Return Loss > 40 dB
Power Sampling Speed (rate) 10 us (100 kHz)
Operation Temperature 0 +40
Storage Temperature -30+80
Recalibration Period 2 years
Communication Port USB port
Dimensions 63mm H,43 mm W,150 mm D
Weight 0.5 kg
