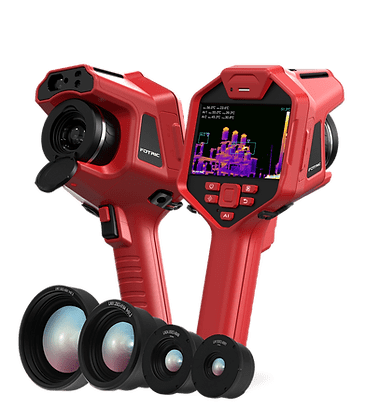

Fotric 348A-L44-L7 (w/ 44°+7° Lens) 640 x 480 thermal resolution and 30mk NETD

The FOTRIC 348A is an advanced handheld thermal camera, designed for professionals to improve maintenance efficiency in Electric industry, Oil and gas, and Manufacturing industries.
Its 640 x 480 thermal resolution and 30mk NETD enable superior imaging display on 5” LCD touch screen. Other advanced features like laser-assisted autofocus, inter-changeable Lens options, and powerful AnalyzIR report software, all boost the operational performance, making it an ideal tool for site inspections.

pdf FOTRIC 340 Catalog V22.02.18

pdf 340 Quick start manual

pdf 340 full user manual 22.02.28

SKU: Fotric 348A-L44-L7 Category:
Brands:
Brands

Description

Fotric 348A-L44-L7 (w/ 44°+7° Lens) 640 x 480 thermal resolution and 30mk NETD

The FOTRIC 348A is an advanced handheld thermal camera, designed for professionals to improve maintenance efficiency in Electric industry, Oil and gas, and Manufacturing industries.
Its 640 x 480 thermal resolution and 30mk NETD enable superior imaging display on 5” LCD touch screen. Other advanced features like laser-assisted autofocus, inter-changeable Lens options, and powerful AnalyzIR report software, all boost the operational performance, making it an ideal tool for site inspections.

Main Specifications

Key Features 348A
Infrared Resolution 640*480
Thermal Sensitivity(NETD) <0.03℃@30℃
Temperature Measurement Range -20℃ to 120℃ (-4℉ to 248℉);
0℃ to 650℃(32℉ to 1202℉);
300℃ to 1550℃(572℉ to 2822℉);
smart switch between
User-definable Markers 16 spot markers; 12 (rectangle or circle); 8 measurement lines
Focus Mode TurboFocus™Speedy Intelligent Autofocus system for continuous, laser distance, graphic contrast,manual
Field of View(FOV)- Standard Lens 25°×19°
Interchangable Lens Options Wide-angle:44°×34°(<0.1m), IFOV:1.2mrad
Telephoto:12°×9°(<1.0m), IFOV:0.33mrad
Ultra Telephoto:7°×5°(<3.0m), IFOV:0.19mrad
AI Programmable Key Yes, for quick start
Frame Rate 30Hz
Lens Options Optional wide-angle lens, telephoto lens and ultra telephoto lens
Storage Memory 128GB SD memory card
Accuracy ± 1℃ or ± 1 %, whichever is greater at below 200°C, ± 2℃ or ± 2 % above(ambient temp between15℃ ~35℃ )  ± 2℃ or ± 2 %, whichever is greater(ambient temp between15℃ ~35℃ )
On-screen Analysis Emissivity, Partially emissivity, Reflected temperaure, Ambient temperature, Humidity and Distance.
Sound Alarms Area alarm; High temperature alarm and low temperature alarm
Display Gorilla Glass Explosion-proof IPS LCD
Display pixels: 1280*720,Display size: 5inch (landscape)
Build-in Digital Camera (visible light) 13-megapixel, industrial digital camera
Palettes 15 standard palettes, 3 color isotherm, 15 inverted palettes
Image File Formats Standard JPEG with measurement data included
Video File Formats Full radiation thermal image video in IRS format;
standard MPEG4 non radiation video;
Remote Control Operations Remote display and control operation through Fotric AnalyzIR software
Battery Life Over 4 hours per battery
Battery Charging System Two-bay battery charger with LED display (12V, 3A)
Device Interface Support USB Type-C 3.0, Micro HDMI and SD card
Vibration EN 60068-2-6
Drop Engineered to withstand 2 meters (6.5 feet) drop with standard lens
Enclosure Rating IP54 (protected against dust, limited ingress; protection against water spray from all directions),
GB/T 4208-2017/IEC60529:2013
Shock EN 60068-2-27
Electromagnetic  Compatibility EN 61326-1:2013 ( EN 61000-6-2)

EN 61326-1:2013 Class A ( EN 61000-6-3)

FCC 47 CFR Part15 Class A (emission)

*Some features might be added or slightly altered according to the region and country
