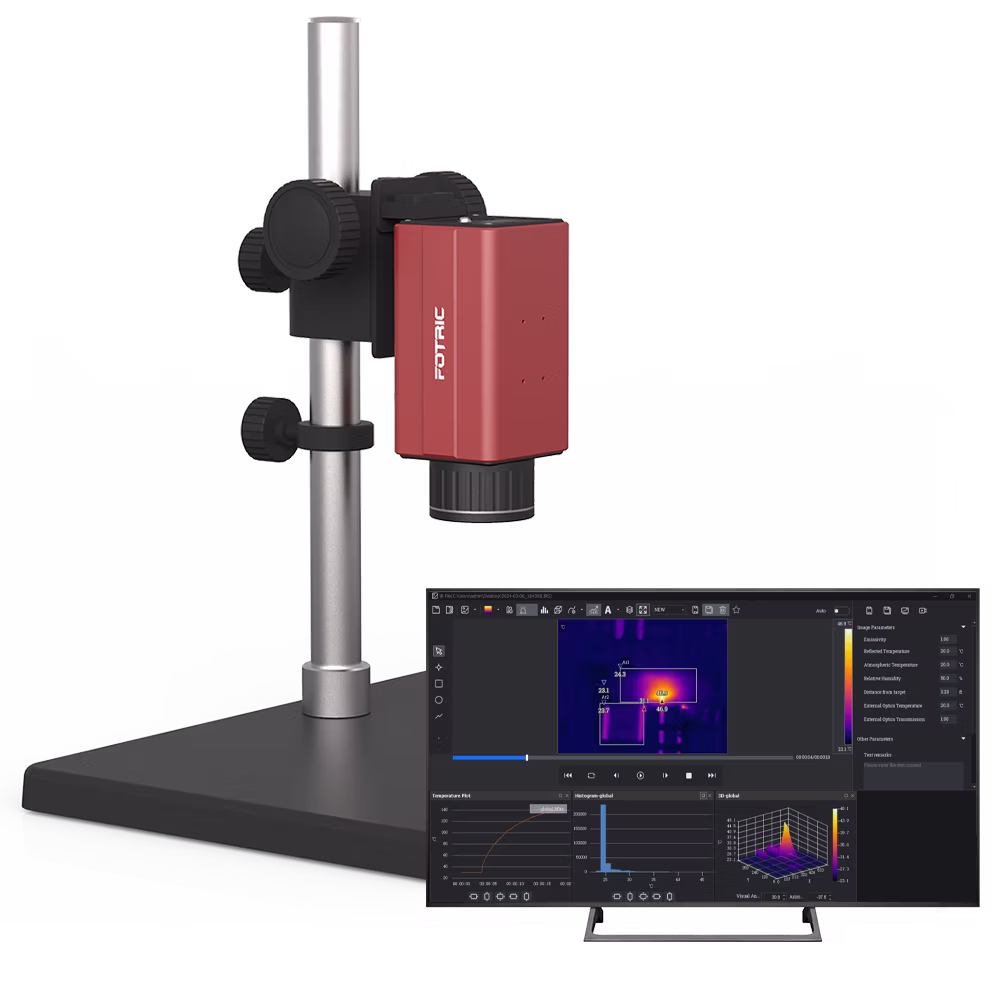

FOTRIC 228Link R&D Thermal Camera
- FOTRIC R&D’s excellent hardware configuration, combined with extraordinary imaging algorithms, results in superior product performance
- The 640*480 pixel infrared detector provides a thermal map with over 300,000 temperature points as data matrix
- State of the art imageing algorithm significantly reduces noise and boosts image clarity
- Thermal sensitivity of 0.03℃ , more sensitive to temperature change and makes more accurate temperature measurement
- High EMC compatibility, effectively prevent electromagnetic interference and electrostatic breakdown
- Description
Description
FOTRIC 228Link R&D Thermal Camera
The FOTRIC 228Link R&D Thermal Camera offers powerful, cutting-edge insights for your circuit boards, chips, and electronic equipment. It’s designed to detect problems before they occur.
The optional 20μm and 50μm Macro Lens and 30mk NETD enable detailed temperature distribution data and microstructures such as chips. Other advanced features like streaming radiometric video of 30Hz, +2°C or + 2 %measurement accuracy, and powerful AnalyzIR Software on PC, all boost the operational performance, making it an ideal tool to optimize your circuit boards, chips, and more.
| Key Features | 228Link |
| Infrared Resolution |
640 x 480
|
| Thermal Sensitivity NETD) |
＜ 0.03℃ @30℃ , 30mk
|
| Field of View（FOV）- Standard Lens | 29°* 22°, IFOV:0.79 mrad |
|
Optional Lens
|
M20 & M50
|
| Infrared Spectral Band |
8μm~14μm
|
| Detector Type | Uncooled infrared focal plane detector |
| Detector Pitch | 17μm |
| Focus Type | Manual |
| Temperature Measurement Range |
-20℃ -150℃ ; 0℃ -650℃
|
| Accuracy |
± 2℃ or ± 2 %, whichever is greater（ambient temp between15℃ ~35℃ )
|
| Measurement parameters |
Emissivity; Ambient temperature; Reflected temperature; Relative humidity;
|
| ROI emissivity | Support |
| Palettes | 9 standard palettes and 9 inverted palettes |
| Image Processing | Non-uniform calibration, digital enhancement |
|
Image Mirroring
|
Left-right, up-down, centrosymmetric |
|
Video Stream
Compression Standard
|
H.264 |
| Radiometric stream | Support 25Hz radiometric stream |
| Pan-tilt control | Support Pelco-D protocol |
| ROls |
5 points, 10 lines, and 10 regions support Modbus output
|
| Software | AnalyzIR |
| Ethernet type | 10M/100M/1000M adaptive |
|
Cuncurrent Access
|
Mainstream and substream: 10; Radiometric stream: 1 |
| IP connection interface | ONVIF |
| Power connector | Screw-on wire terminal |
| Network connector | Screw-on RJ45 with status indicator LED |
| Serial port | RS-485 |
| Power supply | 12V/24V DC, PoE |
| Power consumption |
<3W
|
|
Enclosure Rating
|
IP40
|
|
Weight
|
490g（without lens or base）
|
*Some features might be added or slightly altered according to the region and country
