EDT-SS  IR, body temperature scanning

FOTRIC 225-L40 Thermal Imager
Fotric 462 Black Body Calibrator – For Use with 226B Thermal
  • Non-contact temperature recordings paired, stored and matched to facial recognition.
  • Generates pass/fail results for mask or no mask and any temperature above set
  • Temperature range: 86°F to 113°F, accuracy: ±0.54°F
  • Support temperature data SDK and HTTP protocol integration with third party
  • Information automatically
  • Professional face recognition algorithm with high accuracy & recognition time under .5
  • Wide dynamic range ≥80dB
  • Windows/Linux SDK and HTTP
  • 8 inch IPS high resolution
  • IP34
  • MTBF＞50000 H
  • Supports 22400 images in database and 100000 face recognition records
  • Supports one Wiegand input and
  • Anti-fog, 3D noise reduction, BLC, stabilizer, and adjustable white balance to fit for different application
  • Speaker support (Human temperature normal/high alarm, face recognition pass / fail result)
  • 32°F- +122°F working temperature.

EDT-SS



Certificates

CE   FCC   ROHS

SKU: EDT-SS Categories: ,
Brands:
Brands

Options & Accessories

(camera, stand, and base) 5.5 ft

(camera, stand, and base) 4.6 ft

(camera, stand, and base) 2.8 ft

(camera and base) 1 ft.

Request a Quote

Description

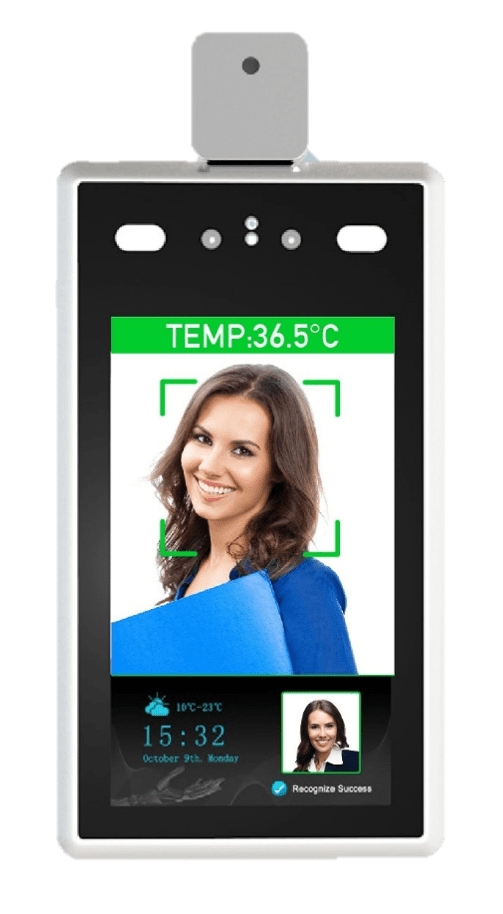

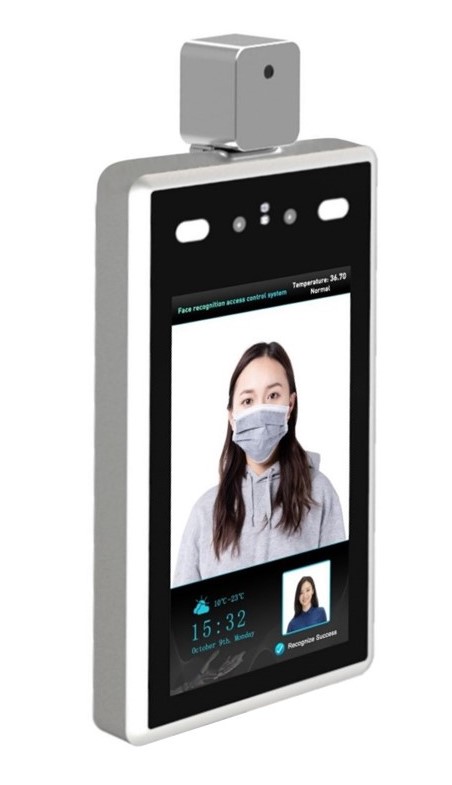

EDT-SS  IR, body temperature scanning

IR, body temperature scanning

This temperature monitoring system is not intended for use as a medical device and cannot be used to diagnose or rule out infection, including COVID-19. Upon detection of elevated skin temperature, followup diagnosis must be done under the guidance of a medical professional.
Custom-Cal is not responsible for legal actions resulting from use of facial recognition. Facial
recognition capabilities and/or connection to the internet are under control of the user via software and configuration settings.



Features:

  • Non-contact temperature recordings paired, stored and matched to facial recognition.
  • Generates pass/fail results for mask or no mask and any temperature above set
  • Temperature range: 86°F to 113°F, accuracy: ±0.54°F
  • Support temperature data SDK and HTTP protocol integration with third party
  • Information automatically
  • Professional face recognition algorithm with high accuracy & recognition time under .5
  • Wide dynamic range ≥80dB
  • Windows/Linux SDK and HTTP
  • 8 inch IPS high resolution
  • IP34
  • MTBF＞50000 H
  • Supports 22400 images in database and 100000 face recognition records
  • Supports one Wiegand input and
  • Anti-fog, 3D noise reduction, BLC, stabilizer, and adjustable white balance to fit for different application
  • Speaker support (Human temperature normal/high alarm, face recognition pass / fail result)
  • 32°F- +122°F working temperature.

Interface:

Additional information

Weight 2.1 kg
Dimensions 15.4 × 8.9 × 36.1 cm
Model EDT-SS
Hardware
Chipset Hi3516DV300
System Linux operation system
RAM 16G EMMC
Image sensor 1/2.7″ CMOS
Lens 4mm
Camera Parameters
Effective pixel 2Mega pixel，1920*1080
Min. lux Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2
SNR ≥50db(AGC OFF)
WDR ≥80db
Face Recognition
Height 1.2-2.2 M, angle adjustable
Distance 1.64 – 9.84 ft.
View angle Vertical ±30 degree
Reco. Time ＜500ms
Function Support 22400 faces database and 100000 records
Temperature
Range 86°F – 113°F
Accuracy ±0.54°F
Distance ≤  1.64 ft.
Response time ＜300ms
Interface
Internet

interface

 RJ45 10M/100M Ethernet
Weigand port Support input/output 26 and 34
Alarm output 1channel relay output
USB port 1USB port (Can be connected to ID identifier）
General
Power input DC 12V/3A
Power

consumption

 20W(MAX)
Working

temperature

 32°F – 122°F working temperature.
Humidity 5～90%, non-condense
Dimension 6.06(W) 3.50(H) 14.22(L) inch
Weight 4.62 lbs.
Product name Products pictures Weight Carton Dimension
Pro series stand 5.25 20.5 kg 5.25 feet high with camera


Pro series stand 3.93
5.86 kg 110*13*14 cm
Pro series stand 1.80
3.78 kg 60*13*14 cm
Triangular base
1.46 kg 30*27*5 cm
Host bracket 0.6kg
