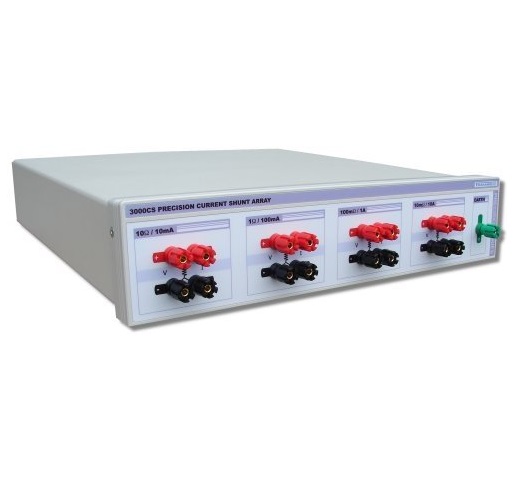

3000CS Precision Current Shunt Array

3000CS Precision Current Shunt Array

$3,594.00

  • Precision current shunt array
  • Values 10mA through to 10A
  • 1 year stability of up to 5ppm
  • 4-Wire PT100 Output
  • Temperature coefficients of less than 0.6ppm/°C

3000CS Example Accredited Certificate

 3000CS-Operation-Manual-V1-00

 3000CS-Specifications

SKU: 3000CS Category:
Brands:
Brands
Product price
Additional options total:
Order total:
View cart

Description

3000CS Precision Current Shunt Array

Description

The 3000CS provides a precision set of current shunts for current ranges from 10mA to 10A, providing additional ranges for multimeters that either lack sufficient accuracy at required currents, or lack the required current ranges entirely.

The 3000CS is set of 4 shunts with dedicated current input and voltage sense inputs, with 1 year stability of up to 5ppm, and temperature coefficients of less than 0.6ppm/°C. High precision, current-sensing foil resistors provide unmatched self-heating effects without requiring immersion in oil baths.

To verify self-heating effects, a 4-wire PT100 output is provided, so self-heating effects can be monitored and independently verified against existing standards.

Additional information

Dimensions 45 × 44 × 9 cm



GENERAL SPECIFICATIONS
DESCRIPTION Precision current shunt array
OUTPUTS 10mA • 100mA • 1A • 10A
REAR PANEL 4-Wire PT100 Output
DIMENSIONS 45cm x 44cm x 9cm



PERFORMANCE

SPECIFICATIONS

VALUE T/C

(ppm/°C)

Power Max I STABILITY/YEAR

(ppm)

0.01 Ohm 5 1W 10A 15
0.1 Ohm 5 0.1W 1A 10
1 Ohm 0.5 0.01W 100mA 10
10 Ohms 0.6 0.001W 10mA 5
