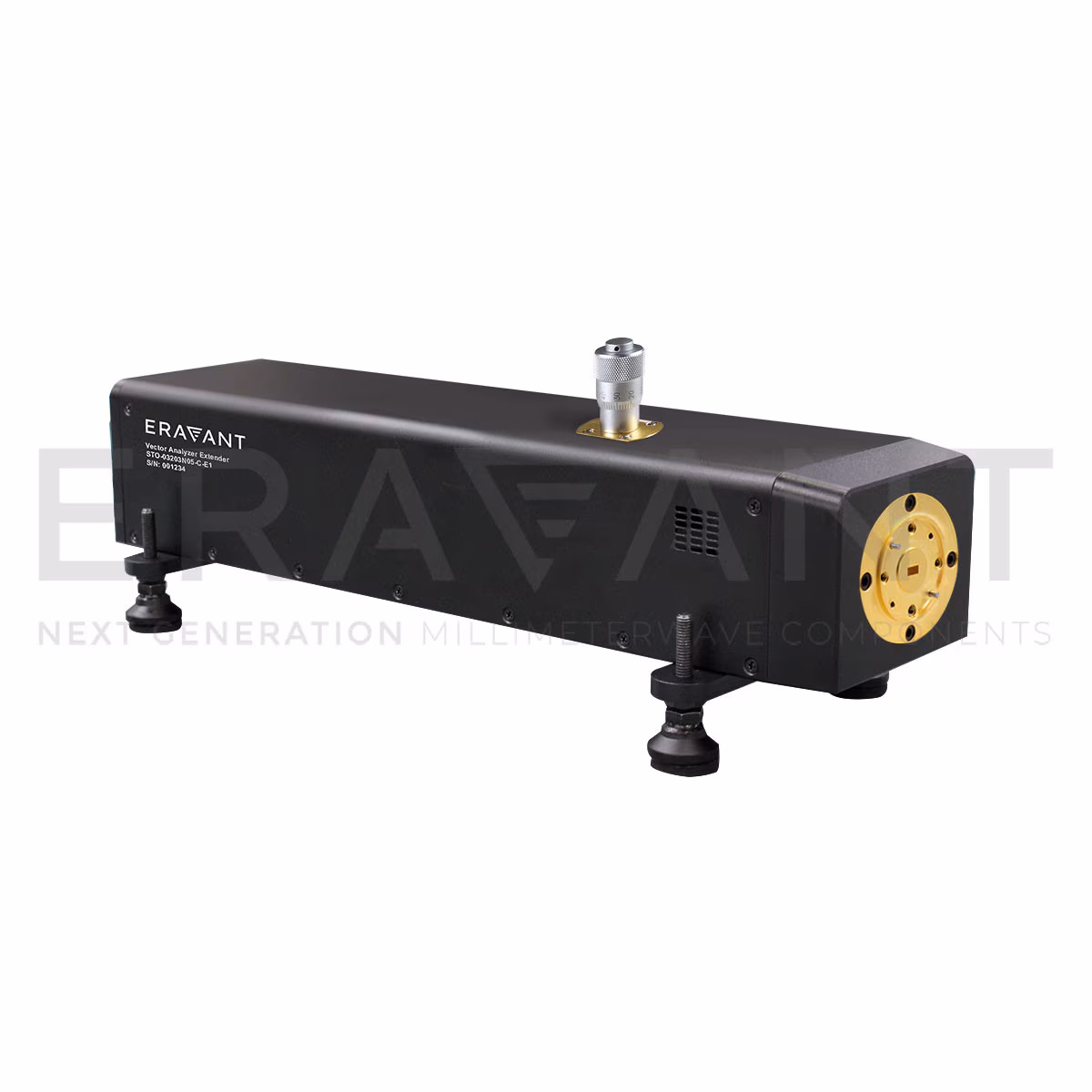

U-Band, VNA Frequency Extender, Tx/Rx Module with Attenuator
40 to 60 GHz, 120 dB Dynamic Range, 10 to 15 GHz Input, +16 dBm Output Power, WR-19 Waveguide
- Description
Description
U-Band, VNA Frequency Extender, Tx/Rx Module with Attenuator
STO-1920316-CM-E1 is a U-Band vector network analyzer (VNA) frequency extender Tx/Rx designed to achieve full 1-port, S-parameter testing at 40 to 60 GHz. It is compatible with modern vector network analyzers such as the Copper Mountain CobaltFx. The VNA needs dual sources to be extended. The frequency extender can achieve a dynamic range up to 120 dB for certain passive products that require high rejection, isolation, and return loss testing such as directional couplers, orthomode transducers, and filters. An AC to DC Power adapter and two Proxi-FlangeTM Contactless Flanges (STQ-WG-19010-FB-CF and STQ-WG-19025-FB-CF), are included. The Eravant calibration kit (STQ-TO-19-S1-CKIT1) is highly recommended to complete the U-Band VNA test set. VNA extender is packaged individually in a rugged equipment box with additional hardware and tools.
Technical Details
| Minimum Frequency | 40 GHz |
| Maximum Frequency | 60 GHz |
| Test Port Output Power | +16 dBm |
| Output Power Control Range | 30 dB |
| Dynamic Range | 120 dB |
| Minimum Input Frequency | 10 GHz |
| Maximum Input Frequency | 15 GHz |
| RF Source Input Power | 0 dBm |
| LO Source Input Power | +3 dBm |
| RF Port | WR-19 Waveguide |
