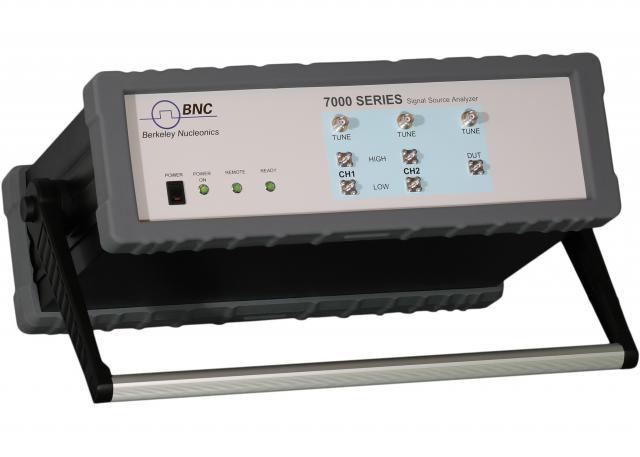

7340 / 5 MHz –40 GHz Signal Source Analyzer, 100 MHz IF Bandwidth

7340 / The 7000 series is an integrated solution that offers an indispensable set of low-noise phase measurement functions for evaluating VHF to microwave frequency signal sources such as crystal oscillators, PLL synthesizers, clocks, phase-locked or free-running VCO’s, DROs, SAW, or YIG oscillators, and others. The flexible instrument comprises a two-channel, cross-correlation system with two internal, tunable references sources that also allows measurements with externally sourced references. We offer three platform options for the 7000 Series Phase Noise Testers: the 7070 1 MHz to 7 GHz, the 7300 1 MHz to 26 GHz, and the 7340 from 1 MHz to 40 GHz.

OVERVIEW

Applications

Features
  • High-speed production testing of phase noise
  • VCO testing
  • Additive phase noise characterization of amplifiers, transmitters, mixers
  • Ultra-low phase noise crystal oscillator analysis
  • Time stability analysis of clocks
  • All-in-one compact measurement system
  • Measurements down to -190 dBc/Hz
  • Offset range from 0.01 Hz to 100 MHz
  • Highest flexibility & dynamic range by selectable internal or external references
  • Programmable low noise power supplies
  • Powerful GUI and programming interface
  • External battery pack option

QUICK SPECS

Frequency Range 7070: 1 MHz to 7 GHz
7300: 1 MHz to 26 GHz
7340: 1 MHz to 40 GHz
Input Power Range  -20 to +20 dBm
Analysis Range (Offset)  0.01 Hz to 100 MHz
Dimensions (W x L x H)

Weight

 18.4 x 13.5 x 6.1 in   [467.5 x 342 x 154 mm]

22lbs [10 kg]
Measurements Supported Phase noise (Absolute & Additive, CW, Pulsed or Burst-mode), Amplitude noise (CW & Pulsed), Jitter, Frequency Counter, Allan Deviation, Transients of Frequency, Power and Phase, Spectrum monitoring, VCO Characterization test bench

SIGNAL SOURCE ANALYZER RESOURCES

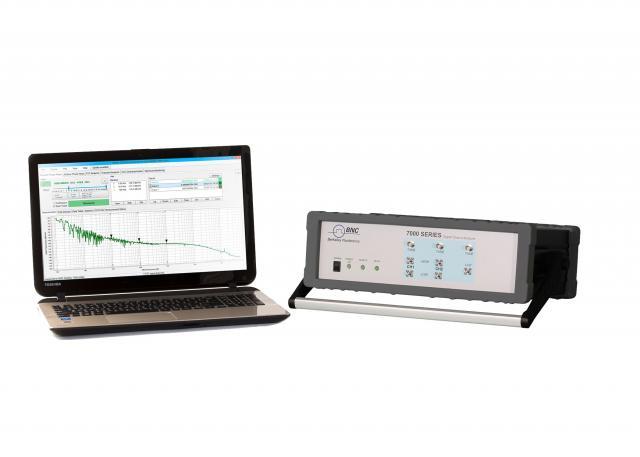

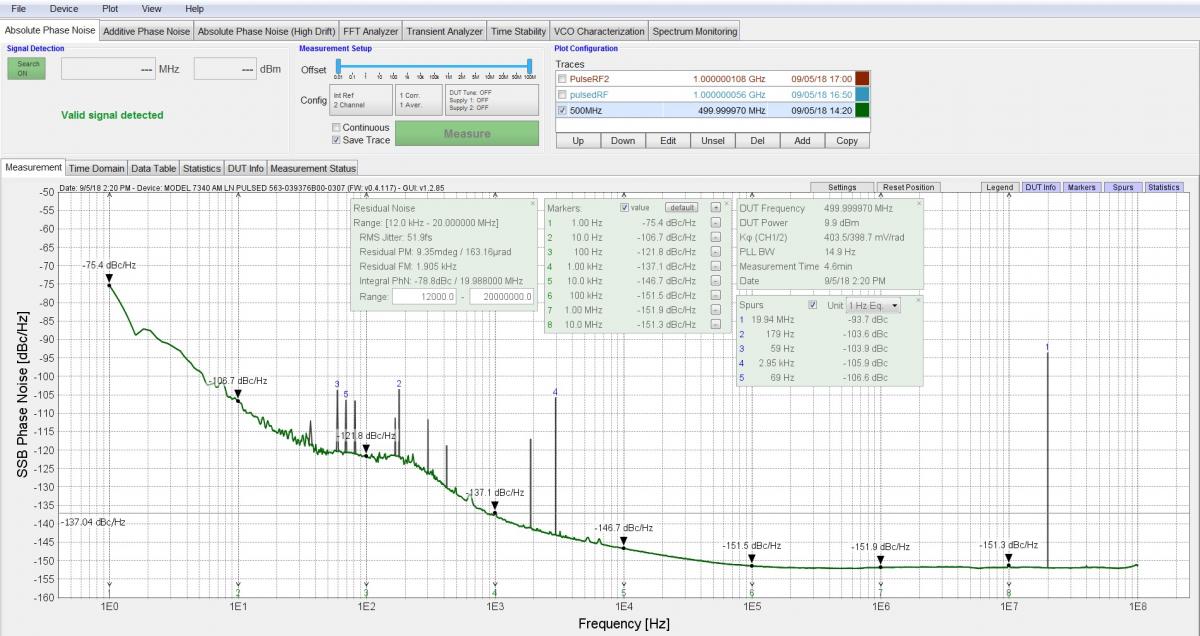

A remote control for the instrument is available with LAN (VXI-11), USB or GPIB. The GPIB is an option and conforms with IEEE standards. The remote control is addressed with a user choice of software or command string options. The included comprehensive GUI gives users control of all parameters in BNC’s familiar virtual instrument panel.

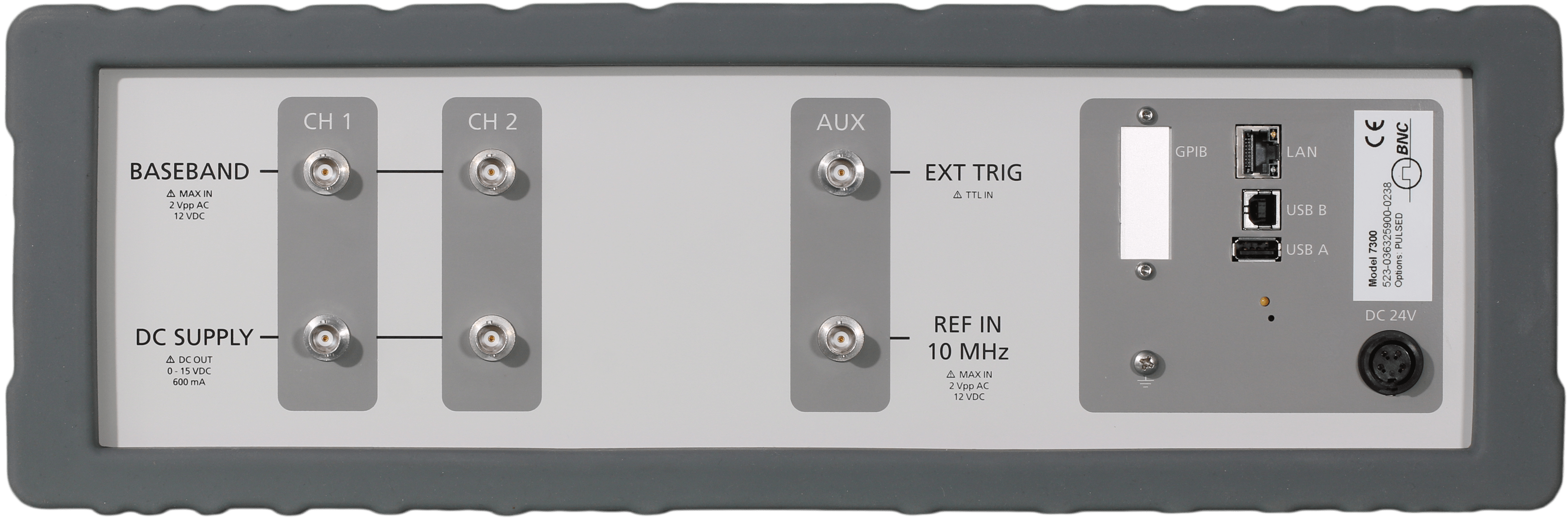

Rear Panel



Additional information

Weight 10 kg
Dimensions 46.75 × 34.2 × 15.4 cm
