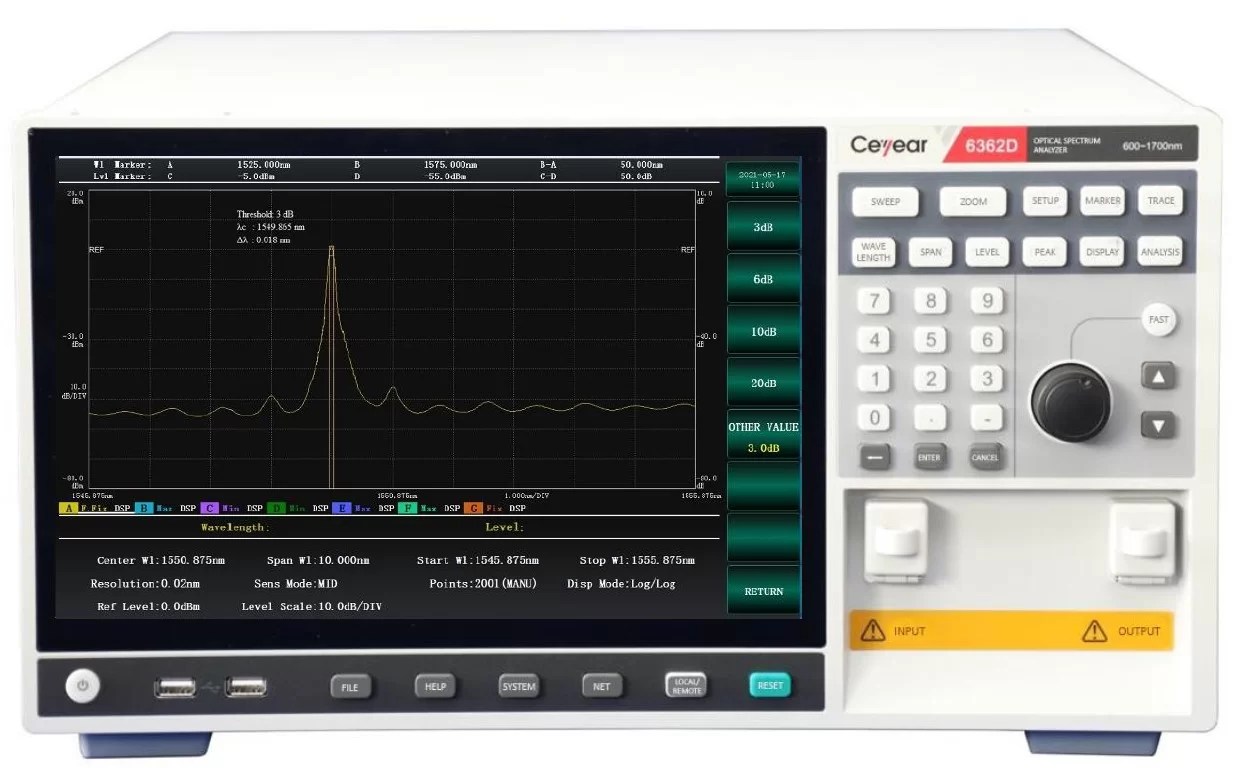

6362D Optical Spectrum Analyzer ( 600 nm 1700 nm)

  • 20 pm minimum spectrum resolution
  • 600 nm to 1700 nm spectrum scanning range
  • 78dB large dynamic range
  • -90dBm sensoring sensitivity
  • Support spatial light input
  • Built-in light source output configuration
  • Powerful spectrum data analysis function for multiple applications
  • 12.1-inch touch screen

pdf 6362D Optical Spectrum Analzyer

Availability: Out of stock SKU: 6362D Category:
Brands:
Brands

Description

6362D Optical Spectrum Analyzer ( 600 nm 1700 nm)

6362D is a high-resolution, large-dynamic, high-speed, high-performance optical spectrum analyzer. It is perfect for testing 600 nm to 1700 nm optical systems, such as DWDM and optical amplifiers; It can also be used for optical active and passive device testing, such as LED, FP-LD, DFB-LD, optical transceivers and optical fibers and fiber gratings and other optical devices.

Main Features

  • 20 pm minimum spectrum resolution
  • 600 nm to 1700 nm spectrum scanning range
  • 78dB large dynamic range
  • -90dBm sensoring sensitivity
  • Support spatial light input
  • Built-in light source output configuration
  • Powerful spectrum data analysis function for multiple applications
  • 12.1-inch touch screen



20 pm minimum spectrum resolution

6362D optical spectrum analyzer supports different resolution settings with flexible switching methods. The minimum spectrum resolution is better than 20pm.

Items Specifications
Spectral Range 600~1700nm
Scan Span 0.2 nm to 1100 nm (full span), 0 nm


Wavelength Accuracy

±0.02 nm    (1520nm to 1620nm)

±0.04 nm    (1450nm to 1520nm)

±0.10 nm    (full span)

Wavelength Linearity ±0.01nm(1520~1580nm)
Wavelength Repeatability ±0.005nm(2 minutes)
Wavelength Resolution Setting 0.02, 0.05, 0.1, 0.2, 0.5, 1, 2 nm
Minimum Sampling Resolution 0.001 nm
Sampling Points 101 to 50001, AUTO
Power Sensitivity Settings NORMAL, MID, HIGH1, HIGH2 and HIGH3


Power Sensitivity

-90 dBm    (1300 to 1620nm)

-85 dBm    (1000 to 1300nm)

-60 dBm    (600 to 1000nm) (Sensitivity: HIGH3)

maximum input power +20 dBm (per channe, full wavelength band)
Maximum safe input power +25 dBm(Total input power)
Power accuracy ±0.4    dB    (1310/1550nm,   input    power:    -20dBm, sensitivity: MID)
Power Linearity ±0.05 dB (input power:-50dBm to +10dBm)
Power flatness ±0.1dB (1520nm to 1580nm)

±0.2dB (1450nm to 1520nm, 1580nm to 1620nm)

Polarization Dependence ±0.05 dB (1550nm), ±0.08 dB (1310nm)




Dynamic Range

Resolution: 0.02 nm 63dB (peak ±0.2nm, typical 66dB) 46dB (peak ±0.1nm, typical 50dB)


Resolution: 0.05 nm

73dB (peak ±1.0nm, typical 76dB) 70dB (peak ±0.4nm, typical 73dB) 63dB (peak ±0.2nm, typical 66dB)
Resolution: 0.1 nm 67dB (peak ±0.4nm, Typical 70dB) 57dB (peak ±0.2nm, Typical 60dB)
Stray Light Suppression Rate 76dB
Optical Return Loss 35dB (using APC connectors)
Applicable Fiber Type SM (9.5/125um), GI (50/125um, 62.5 um, 125um),

Large core diameter fiber (maximum 200um)





Optical Output Options

Standard C-band DFB calibration light source

DFB/FP    light    source    (standard    1550nm,    other wavelengths are optional)

SLED light source (band range optional), SLED+C2H2 light source

Other light source type accessories can be customized

Displaying 12.1 inch touch screen
Storage 128GB
Instrument Interface USB/Ethernet/GPIB/RS232C/VGA


Working Conditions

Working Temperature: 0℃ to 40℃;

Humidity: ≤80%

Performance guarantee temperature: 18℃ to 28℃

Dimensions Width × Height × Depth = 426mm × 221mm × 450mm
Weight 19kg
Power Supply 100~240VAC, 50\60Hz
Maximum Power Consumption 100W

Remarks: Wavelength calibration and optical axis alignment can be performed with an external light source.
