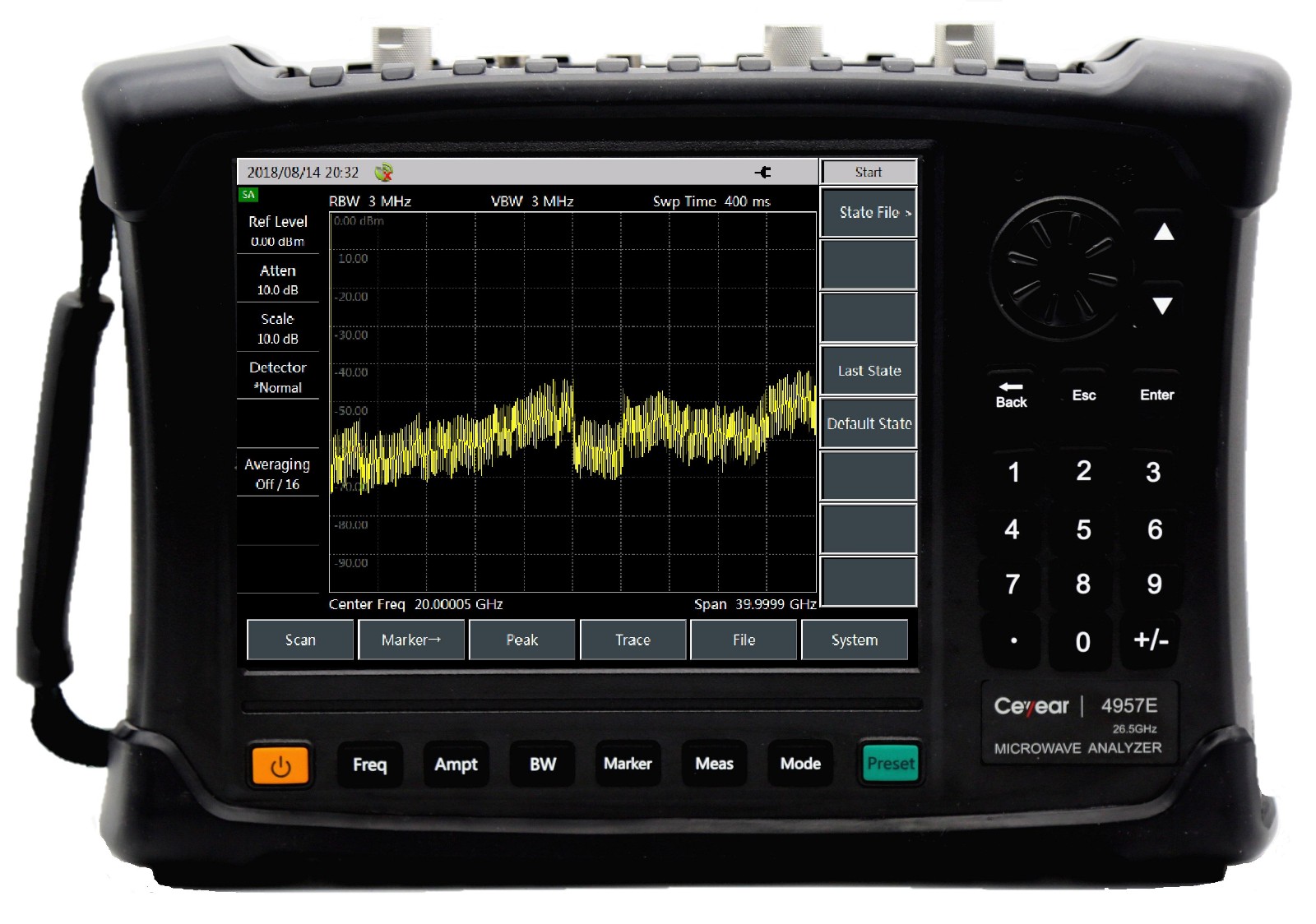

4957E Microwave Analyzer 30kHz~26.5GHz

  • Rich analysis functions.
  • Compacted size.
  • 4-inch LCD touch screen features.
  • Analysis data can be stored and recalled.
  • Battery-powered.
  • Providing six independent marker
  • Data storage, playback and comparison capabilities
  • USB, LAN and other interfaces

4957 User Manual



4957 Quick Start Guide



4957 Programming Manual

SKU: 4957E Category:
Brands:
Brands

Description

4957E Microwave Analyzer 30kHz~26.5GHz

Product Overview

The 4957D/E/F microwave analyzer has a frequency range of up to 18 GHz/26.5 GHz/40 GHz, and is provided with various functions, including dual port vector network analysis, cable and antenna analysis, vector voltage measurement, spectrum analysis (channel power, adjacent channel power, occupied bandwidth, interference analysis and frequency counting), field strength measurement and power measurement, providing users with powerful comprehensive analysis capabilities!
Dual-port vector network analysis has the capability of fast and accurate measurement of RF network parameters, provides logarithm, linearity, phase, group delay, impedance circle diagram, polar coordinates, standing wave ratio and other displaying formats and also provides time domain measurements option.
The cable and antenna analysis can measure the standing wave ratio, return loss, impedance, cable loss and other parameters of the microwave network such as antenna, transmission line and cable. In addition, the Distance-To-Fault (DTF) function enables to conveniently measure the impedance discontinuous point of the cable antenna feeder and cable.
The vector voltage measurement function replaces the traditional vector voltmeter with an integrated solution that accurately analyzes the electrical length of cables and other devices under analysis.
The spectrum analyzer is a standard function spectrum analyzer that comprehensively measures the spectral features of the electromagnetic environment.
The field strength measurement function features user-friendly interface and high analysis sensitivity, can effectively monitor the electromagnetic spectrum with the corresponding analysis antenna and is widely used in space electromagnetic environment monitoring and radio management.
The USB power sensor is configured to achieve large dynamic range and high-precision power measurement, or implement power monitoring through the spectrum input port.

Main Features

  • Rich analysis functions: Cable and antenna analysis, vector network analysis, spectrum analysis, field strength measurement, power monitoring, vector voltage measurement and USB power measurement,
  • Compacted size, light weight, secondary environment adaptability, easy to carry and suitable for special occasion
  • 4-inch LCD touch screen features easy to operate, friendly man-machine interface and intuitive display result.
  • Analysis data can be stored and recalled, providing three storage media: 1.5G or more large-capacity internal memory, USB external memory and SD external
  • Battery-powered, suitable for field use, power management intelligence, providing remaining battery indicator and low battery alarm function and sleep energy saving function
  • Providing six independent marker display functions, with marker position displayed when swiping with finger
  • Providing data storage, playback and comparison capabilities
  • Providing USB, LAN and other interfaces for program control and data transmission

Network Analysis:

The 4957D/E/F microwave analyzer has the network analysis frequency range of 30kHz~18GHz/26.5GHz, 50MHz~40GHz, provides standard full 4S parameter vector network analysis and measurement capability and can carry out fully S-parameter analysis against amplifier, filter, attenuator and duplexer, and its display format includes logarithm, linearity, phase, group delay, impedance, polar coordinates, standing wave ratio, etc.

Spectrum Analysis:

The 4957D/E/F microwave analyzer has the spectrum analysis function (spectral analysis, channel power, occupied bandwidth, adjacent channel power ratio, and frequency counting) and has a frequency range of 100kHz~18GHz/26.5GHz/40GHz, featuring with wide frequency bandwidth, high sensitivity, high dynamic range and good phase noise and has the capability of implementing fast and efficient signal detection and measurement. In addition, this analyzer can display 3 traces at the same time, and has provided different detector mode selections such as standard, sampling, positive peak, negative peak and average. What’s more, it has provided interference analysis, spectrogram, waterfall, data recording and playback.





Cable and antenna analysis (Optional):

As a cable and antenna analyzer, the 4957D/E/F microwave analyzer can measure the return loss, voltage standing wave ratio, impedance, cable loss, and fault point distance of the analyzed components such as cables and antennas, and return loss and Distance-To-Fault measurement will help user determine the specific cause of the fault in the cable and antenna system that degrades the overall system. What’s more, it has provided built-in common cable and antenna feeder parameters for easy use.

Vector Voltage Measurement (Optional):

The 4957D/E/F microwave analyzer has the vector voltage measurement frequency range of 30kHz~18GHz/26.5GHz, 50MHz~26.5GHz, which can accurately match and measure the electrical length and phase shift of the device under analysis, and can perform reflection and transmission analysis.





USB Power Measurement (Optional):

The 4957D/E/F microwave analyzer can perform power measurement by selecting the CETC 872XX series USB continuous wave power sensor, which can analyze the RF/microwave power up to 40GHz.

Power Monitoring (Optional):

The 4957D/E/F microwave analyzer can also be used for power monitoring measurements through the spectrum input port, and has a frequency range of 100kHz to 18GHz/26.5GHz/40GHz.



Field Strength Measurement (Optional):

The 4957D/E/F microwave analyzer can also be used for field strength measurement with the corresponding analysis antennas (such as CETGC’s 89101A/B/C/D, etc.), which is widely used in space electromagnetic environment monitoring and radio management. It supports user antennas, allowing users to customize their own antennas.

Supporting List Sweep

In addition to frequency sweep, including spectrum analysis, cable and antenna analysis, network analysis, etc., it also supports list scanning mode and makes the parameters in each segment become independent of each other.

Supporting Upper and Lower Limit Lines

Spectrum analysis, cable and antenna analysis, and network analysis support limit line analysis. The limit line can be used as a visual reference or as a basis for PASS/FAIL judgment. If the analysis data exceeds the upper limit line or is lower than the lower limit line, the speaker will send a “beep” sound to remind the user that the data is out of tolerance.

Menu in Both Chinese and English for Easy Operation

Both Chinese and English menus are available in the machine, which is very convenient to switch with one button.

Sleep and Energy Saving Function

It provides the function of displaying sleep for energy saving, set the sleep time, and when the sleep function is turned on and is not operated for a certain period of time, it will automatically turn off the display or shut down, thus saving energy, and effectively extending working time and life of battery.

More Markers

It provides up to 8 independent markers to display the parameters of the marker position, as well as provide maximum, minimum or peak search. Each marker provides a △ mode to make analysis readings become easier. In addition, the ruler on the left side of the display facilitates the judgment of the analysis results.

Automatic Software Upgrade through U Disk

The 4957D/E/F microwave analyzer provides a USB interface that can be used for software intelligent upgrade and data backup. User can conveniently use the USB flash drive to upgrade and maintain the instrument, which only takes a few steps to operate and is simple and quick. The instrument should be restarted after the upgrade.

Typical Applications

The 4957D/E/F microwave analyzer is characterized by compact size, light in weight, easy to carry, numerous analysis parameters and comprehensive analysis functions. What’s more, it is very suitable for multi-parameter analysis requirements and is battery-powered, serves as a powerful tool for routine maintenance and repair of field engineering installation and debugging of various microwave electronic equipment. In addition, it is widely used in radar, communications, radio and television, radio management and other fields. Besides, it is also an optimized choice for college teaching.

Main Performance Parameter Analysis of Radar

As a full-featured analyzer, the 4957D/E/F microwave analyzer can perform the main performance parameter analysis of subsystems in respect of radar antenna, transmitting and receiving of up to 18GHz/26.5GHz/40GHz, including the standing wave ratio, reflection factor, insertion loss, return loss and impedance characteristics etc. of antenna subsystem, frequency of the transmitted signal, spectral characteristics etc. of transmitting subsystem, center frequency, gain, loss, bandwidth, dynamic range of receiving subsystem.

Multi-Parameter Analysis in the Fields of Cable TV and Wireless Communication Etc.

Cable TV, cellular telephone systems, digital mobile communication operators and equipment manufacturers use the 4957D/E/F microwave analyzer to carry out on-site comprehensive analysis of spectrum distribution, antenna contact performance, S-parameters of feed components and feed-through power.







Additional information

Weight 5.3 kg
Dimensions 31.5 × 22.0 × 10.2 cm
4957D 4957E 4957F








Power and antenna Analysis

Frequency Span 30kHz~18GHz 30kHz~26.5GHz 50MHz~40GHz
Frequency Accuracy ±1×10-6
Power Level Big/small
Number of Data Points 101, 201, 401, 601, 801, 1001, 1601, 4001 and 10001
Valid Directivity 30dB~40dB 30dB~38dB 28dB~35dB






Vector Network Analysis

Frequency Span 30kHz~18GHz 30kHz~26.5GHz 50MHz~40GHz
Frequency Accuracy ±1×10-6
Power Scope Big/ small/manual
Valid Directivity 30dB~40dB 30dB~38dB 28dB~35dB


Power Monitoring

Frequency Span 100kHz~18GHz 100kHz~26.5GHz 100kHz~40GHz
Power Scope -60dBm~+20dBm -60dBm~+20dBm -50dBm~+20dBm
















Spectrum Analysis Mode

Frequency Span 100kHz~18GHz 100kHz~26.5GHz 100kHz~40GHz
Res BW 10Hz~5MHz (1, 3 sequence)
Video Bandwidth 1Hz~5MHz (1, 3 sequence)
Explicit Average Noise Level -140dBm~-151dBm (Pre Amp On) -138dBm~-151dBm (Pre Amp On) -135dBm~-151dBm (Pre Amp On)
-120dBm~-135dBm (Pre Amp Off) -116dBm~-135dBm (Pre Amp Off) -113dBm~-135dBm (Pre Amp Off)
Phase Noise (CF=1GHz) ≤-99dBc/Hz@100kHz
≤-110dBc/Hz@1MHz
Residual Response ≤-80dBm ≤-70dBm
Maximum Safe Input Level

+27dBm

Type of Analysis Port N type female 3.5 mm male 2.4 mm male
Power Supply Rechargeable lithium-ion battery or power adapter
Power Consumption ≤45W (excluding charging the battery)
Working Temperature Range -10℃~+50℃
Storage Temperature Range -40℃~+70℃
Maximum Weight 5.3kg (excluding battery)
Maximum Boundary Dimension (Width × Height × Depth)

315mm×220mm×102mm (excluding handle and support)







  • Mainframe:

4957D microwave analyzer 100kHz/30kHz~18GHz 4957E microwave analyzer 100kHz/30kHz~26.5GHz 4957F microwave analyzer 100kHz/50MHz~40GHz

  • Standard Configuration:

No. Name Description




1





Power Cable Component

Standard 3-core power cord

Power adapter: input 100~240V 50/60Hz Output 15V 4A

Rechargeable lithium ion battery



2



CD

Including the user manual, programming manual, USB driver, program control function library, program control example, installation files required for program control function library, etc.
3 Product Quick Start Guide Getting started with the instrument
4 Product        Certificate       of Conformity Factory Certificate of Conformity
  • Options:

Option number Name Function
4957D-01 User Manual
4957D-02 Programming Manual
4957D-S02 Cable      and     Antenna     Analyzer (Software) Used for return loss, standing wave ratio and breakpoint analysis on cable and antenna
4957D-S03 Vector Voltmeter (Software) Used for cable phase shift, electrical length analysis


4957D-S04

USB Power Measurement (Software, Additional USB Power Probe Required) Support external USB power probe for accurate measurement of continuous wave signal power
4957D-S05 Power Monitoring (Software) Receive external signals from the spectrum input port to measure signal power


4957D-S06

Field Strength Measurement (Software, Additional Antenna Required) Measure     the     field    strength     with     the corresponding antenna
4957D-S07 GPS Positioning (Software, Including GPS Antenna) Provide geographic location information such as longitude, latitude and altitude, etc.
4957D-H01 Rechargeable Lithium ion Battery Spare battery
4957D-H02 AC-DC Adapter Standby
4957D-H03 English (Panel, Button And Signage) Used for customers who are unfamiliar with Chinese or exits


4957D-H04

31101A N-Type Male Calibration Piece DC-18GHz for vector network analysis, cable and antenna analysis and vector voltmeter calibration etc.


4957D-H05

31101B N Type Female Calibration Piece DC-18GHz for vector network analysis, cable and antenna analysis and vector voltmeter calibration etc.


4957D-H06



31121   3.5mm Calibration Piece

DC-26.5GHz for vector network analysis, cable and antenna analysis and vector voltmeter calibration, etc.


4957D-H07



31123   2.4mm Calibration Piece

DC-40GHz for vector network analysis, antenna analysis and vector voltmeter calibration, etc.


4957D-H08

N Type Male and Male Calibration Cable

GORE-OSZKUZKU0240



Calibration or cable and antenna analysis



4957D-H09

N Type Female and Male Calibration Cable

GORE-OSZKUZKV0240



Calibration or cable and antenna analysis



4957D-H10

3.5mm      Female      and      Female Calibration Cable

Gore-0rd02d02024.0



Calibration or cable and antenna analysis



4957D-H11

3.5 Mm Female and Male Calibration Cable

Gore-0rd01d02024.0



Calibration or cable and antenna analysis



4957D-H12

2.4mm      Female      and      Female Calibration Cable

Gore-0k0ck0ck024.0



Calibration or cable and antenna analysis



4957D-H13

2.4mm Female and Male Calibration Cable

Gore-0k0cj0ck024.0



Calibration or cable and antenna analysis

4957D-H14 87230 USB Continuous Wave Power Sensor 9kHz~6GHz     for     high     precision                        power measurement
4957D-H15 87231 USB Continuous Wave Power Sensor 10MHz~18GHz    for   high    precision    power measurement
4957D-H16 87232 USB Continuous Wave Power Sensor 50MHz~26.5GHz for high precision power measurement
4957D-H17 87233 USB Continuous Wave Power Sensor 50MHz~40GHz    for   high    precision    power measurement
4957D-H18 89101A Antenna 10kHz~20MHz for field strength measurement
4957D-H19 89101B Antenna 20MHz~200MHz        for       field                                  strength measurement
4957D-H20 89101C Antenna 200MHz~500MHz       for       field                                   strength measurement
4957D-H21 89101D Antenna 500MHz~4000MHz      for      field      strength measurement
4957D-H22 89901 Antenna 1GHz~18GHz for field strength measurement
4957D-H23 89401 Antenna Amplifier 10kHz~4000MHz       for       field       strength measurement
4957D-H24 71522D Attenuator 40dB, 25W for high power measurement
4957D-H25 71523C Attenuator 40 dB, 50 W for high power measurement
4957D-H26 71524C Attenuator 40 dB, 100 W for high power measurement
4957D-H27 71101 Adapter N(f)-N(f) for transfer between connectors
4957D-H28 71115 Adapter 3.5mm(m)-N(f)       for       transfer       between connectors
4957D-H29 71116 Adapter 3.5mm(m)-N(m)       for      transfer      between connectors
4957D-H30 71117 Adapter 3.5mm(f)-N(m)       for       transfer       between connectors
4957D-H31 81101 Adapter N(m)-N(f) for transfer between connectors
4957D-H32 Soft Backpack For carrying
4957D-H33 Aluminum Alloy Carrying Case For transportation
4957D-H34 Waterproof Safety Box For transportation
