SPAW7000 Power Analysis Wavecorder – Multifunctional Power Analyzer
- Highest measurement accuracy: ±(0.01% of reading + 0.02% of range)
- 7 power channels + 2 motor channels
- Bandwidth: DC, 0.1Hz-5MHz
- Combinable configurations with multiple input range and precision modules
- Simultaneous 7-harmonic independent analysis
- Harmonic analysis up to 500th order
- Instantaneous power measurement
- X-Y display
- Description
Description

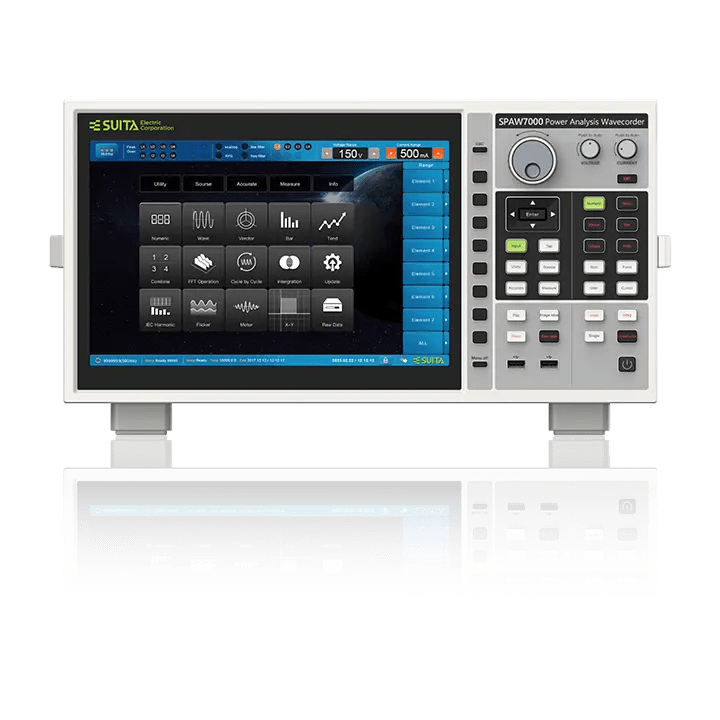

SPAW7000 Power Analyzer SPAW7000 Power Analysis Wavecorder – Multifunctional Power Analyzer
The world’s leading high-precision and advanced power analyzer that seamlessly combines power analysis, data recording, and storage. SPAW7000 is capable of measuring voltage, current, power, efficiency, and other essential parameters for inverters, motors, transformers, and various power conversion systems.
Multifunctional power analyzer for a wide range of applications
SPAW7000 offers 7 power channels and 2 motor channels while also supporting a wide range of power module combinations. Its wide measurement range and high accuracy make it suitable for numerous industries, including electric vehicles, renewable energy, inverters, motors, batteries, lighting, household appliances, and the aviation electronics industry, and more. SPAW7000 boasts an array of powerful features, including multi-channel input, high-speed sampling, real-time data display, waveform display, trend graph, bar graph, and vector diagram displays. With capabilities like harmonic analysis, motor evaluation, voltage fluctuation and flicker measurement, and Fast Fourier Transform (FFT), it enables efficient measurement and analysis of various systems.
Highest measurement accuracy: ±(0.01% of reading + 0.02% of range)
|
High Accuracy
SPAW7000 stands as the most accurate in the market, boasting a measurement accuracy of up to 0.01% of reading.
|
 |
 |
Harmonic Measurement and Analysis
Simultaneous harmonic measurements are conducted for all 7 power channels, offering the flexibility to select different PLL sources. This substantially enhances harmonic measurement efficiency across a range of applications, including inverters, motors, robotics, lighting, and more. The harmonics measurement capabilities extend up to 500th orders.
|
|
Multi-Channel
SPAW7000 features 7 power channels and 2 motor channels, supporting a variety of voltage and current input ranges modules with distinct levels of precision. A maximum of 7 modules can be installed on a single instrument, each typically offering different specifications. This flexibility empowers users to select modules tailored to their specific requirements, thus customizing the instrument to accommodate a wide array of applications using just one power analyzer. We currently offer 8 modules with different specifications, with ongoing development of new modules.
|
 |
 |
Motor Parameter Measurement
SPAW7000 can be linked to a torque and rotation speed sensor to receive analog or pulse output signals. It accurately measures motor rotation speed, direction, torque, synchronous speed, mechanical power, slip, electrical angle, efficiency, and other related parameters. The input can be divided into two groups, facilitating the simultaneous testing of two motors’ parameters. This is particularly well-suited for multi-motor application scenarios, such as in electric vehicles (EVs).
|
