BL671 Portable Blackbody Calibration Source
The BL671 is a small size blackbody calibration source utilizing a digital indicating temperature ambient 30℃ to 50℃ (86F to 122F).
- 0.05℃ high stabillity
- Calibrate from 30℃ to 50℃
- Quickly heat up to 50℃ in 10 minutes
- Target size is 70mm x 70mm
- Built-in temperature correction function
- Quick and easy operate
- Portable and light weight
- Description
- Additional information
- Specifications
- Feature
Description
BL671 Portable Blackbody Calibration Source
The BL671 is a small size blackbody calibration source utilizing a digital indicating temperature ambient 30℃ to 50℃ (86F to 122F). A 70×70 mm size ridged plate is heated or cooled with an internal solid state thermoelectric heat pump. It has a built-in digital temperature controller to provide accurate, stable temperature as well as to provides readout.
APPLICATION

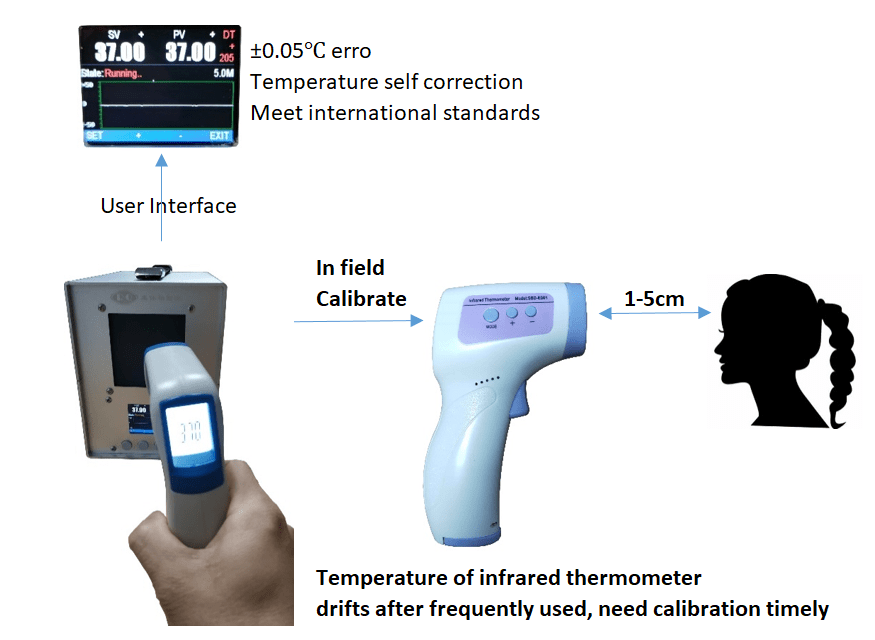

- Infrared thermometer calibration

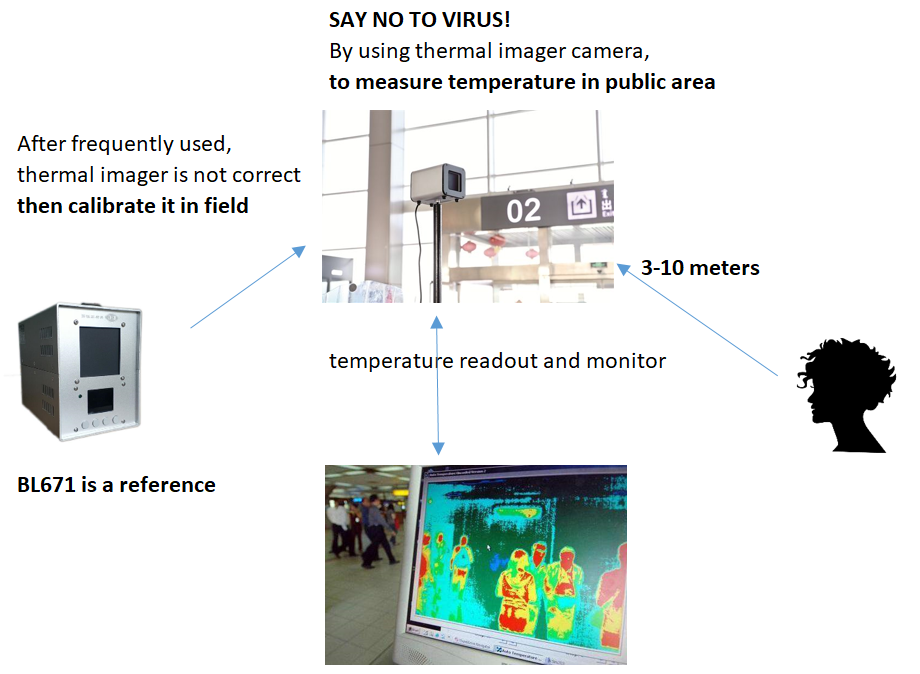

- Thermal image calibration
FEATURE
- 0.05℃ high stabillity
- Calibrate from 30℃ to 50℃
- Quickly heat up to 50℃ in 10 minutes
- Target size is 70mm x 70mm
- Built-in temperature correction function
- Quick and easy operate
- Portable and light weight
DIGITAL READOUT INTERFACE
 |
 |
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 25.0 × 14.0 × 18.0 cm |
| Temperature Range | 30℃ to 50℃ (32F to 122F) |
| Aperture size | 70 mm * 70 mm |
| Emissivity | > 0.95 |
| Display accuracy | ± 0.05℃, (uncertainty is 0.2℃, K=2) |
| Display resolution | 0.01℃ |
| Control stability | ± 0.05℃ after 10 minutes |
| Blackbody uniformity | 0.05℃ |
| Heat cavity shape | Plat Plate |
| Heat up time | 10 minute from ambient to 50℃ |
| Control method | Digital PID controller with readout |
| Temperature sensor | Precison platinum RTD |
| Power supply | 110-220V AC, 50Hz, 60W |
| Interface | RS232 |
| Dimension | 250mm(D) x 140mm(W) x 180mm(H) |
| Net weight | Appr. 2 kg |
SCOPE OF DELIVERY
- BL671 Portable blackbody calibration source with carrying case
- Power adapter as standard 110-240V AC
- Factory calibration report
OPTIONAL ACCESSORIES
- USB into RS232 adapter (P/N:1622)
- Accredited calibration certificate (P/N: 9000-671)
- Tripod with carrying bag (P/N: 67X-TP)
ORDERING MODEL NUMBER
- Model BL671
