UC8724 4 CHANNEL OPTICAL MULTIPORT POWER METER
- 4 channel and 8 channel optional
- High dynamic range
- High speed data acquisition and fast data transfer to computer
- High channel test in one click
- Save space and easy connet with computer with USB/RS232 cable

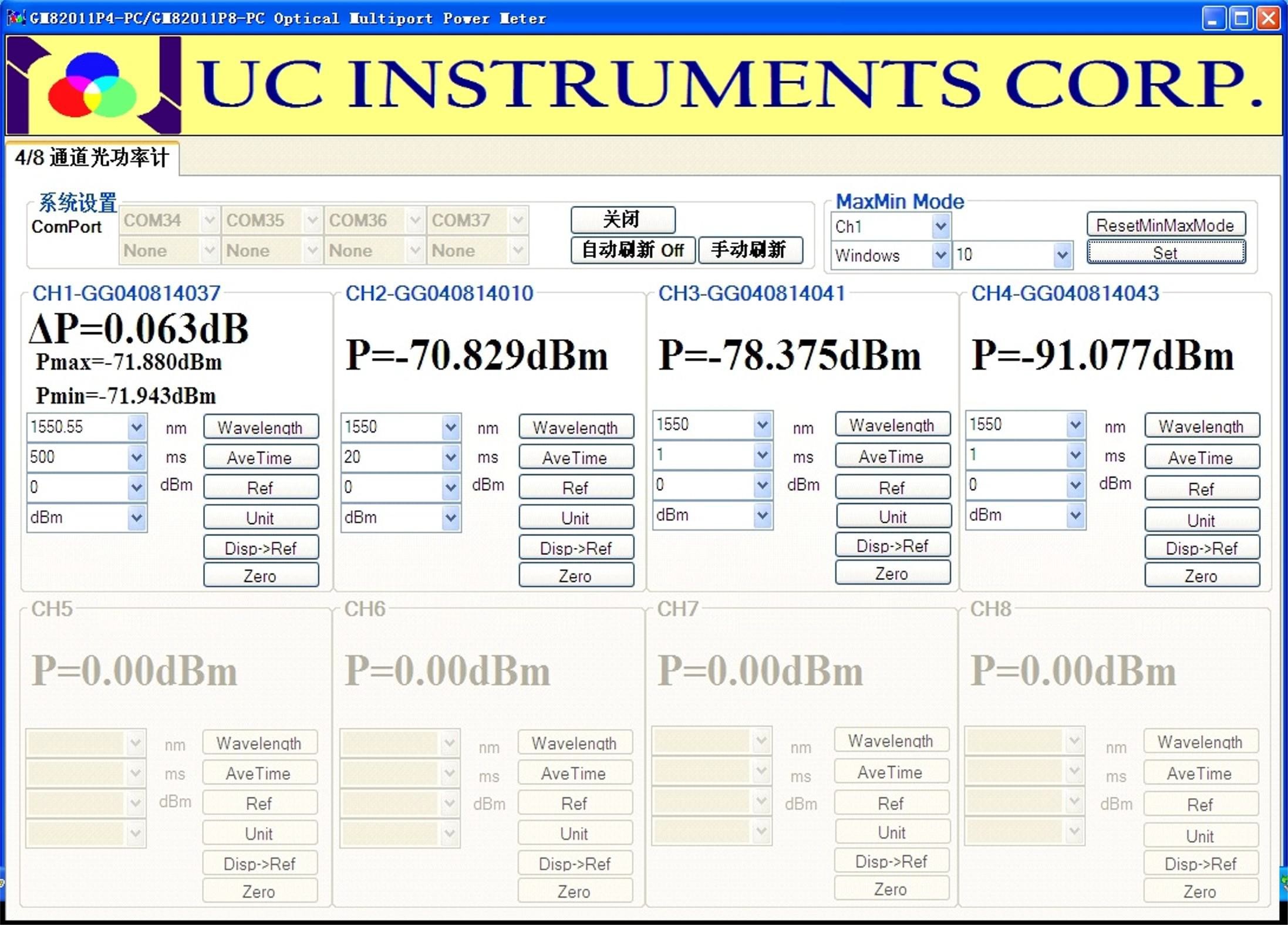

- The order package with USB and RS232 communication cable, GUI software driver and user manual and programming guide (almost same as Keysight N7745A).
31000040 UC8728 4-8 CH Power Meter Spec V200
31000041 UC872nC Multi Chanel Optical Power Meter User Manual V2.00
31000042 UC872nC Multi Chanel Optical Power Meter Programming Guide V2.00
- Description
- Additional information
- Specifications
Description
UC8724 4 CHANNEL OPTICAL MULTIPORT POWER METER
UC8724 4 CHANNEL OPTICAL MULTIPORT POWER METER

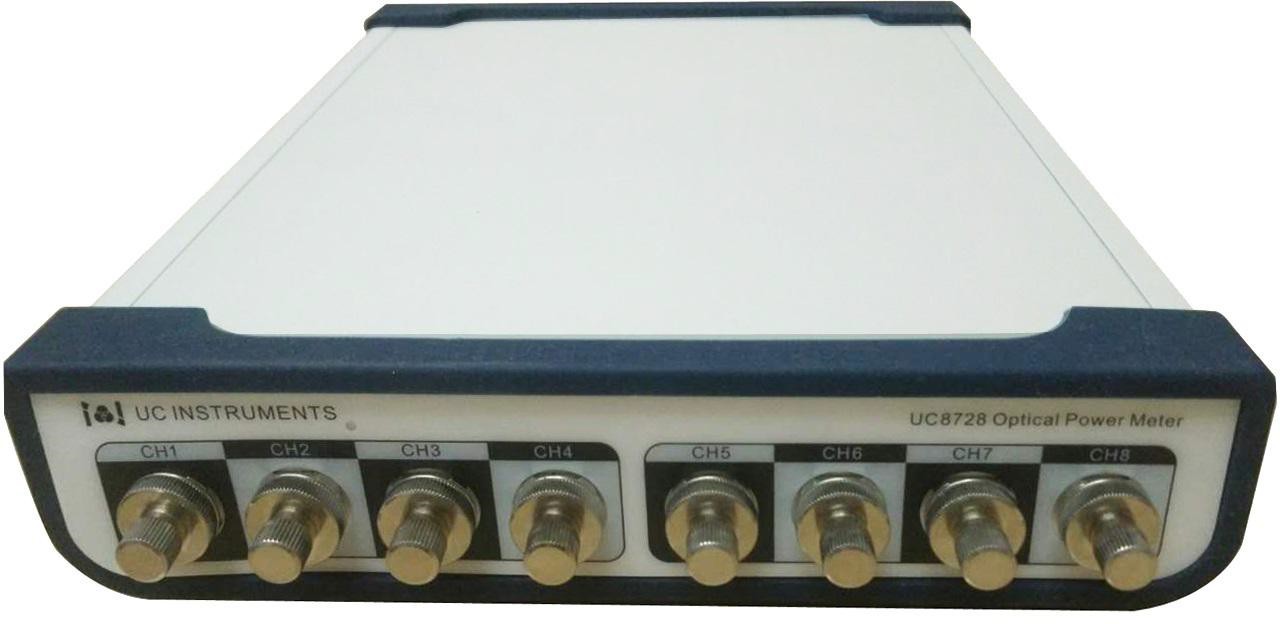

UC INSTRUMENTS UC8724 4 CHANNEL OPTICAL MULITIPORT POWER METER are PC control multiport passive components power meter test system and offer superior performance for the test of multi- channel DWDM, WSS, ROADM, AWG & PLC components and modules, optical amplifiers, DWDM system and other general purpose of multiport fiber optical test and measurement applications. The system can be integrated with tunable laser source, optical attenuator & PDL controller provides a high performance passive components and modules automatic test system platform.
Features
- 4 channel and 8 channel optional
- High dynamic range
- High speed data acquisition and fast data transfer to computer
- High channel test in one click
- Save space and easy connet with computer with USB/RS232 cable
Applications
- Production PLC, AWG, WSS, ROADM multiport components and modules testing
- Fiber Grating Sensor testing
- PMD and PDL measurement
- Fiber Optical , Telcom R & D lab test
- It is easy to be integrated into a passive fiber components testing system
Additional information
Weight | 4.5 kg |
---|---|
Dimensions | 23.5 × 31 × 4.5 cm |
Model # | UC8724 | UC8728 |
Channel Number | 4 Channels | 8 Channels |
Wavelength Range | 850 ~ 1700 nm | |
Power Range | + 3 ~ -75 dBm | |
Application Fiber Type | Standard SM and MM up to 62.5 um core size | |
Calibration Wavelength | 850,980,1300, 1310,1490,1550,1625 | |
Uncertainty (accuracy) at reference condition | +/- 4% (1200 nm ~ 1610 nm) | |
Relative Uncertainty (accuracy) at
reference condition |
< 0.04 dB Typical | |
Linearity (power) | <= +/- 0.06 dB (1200 nm ~ 1610 nm, + 0~ -60 dBm) | |
Return Loss | > 40 dB | |
Operation Temperature | 0~+40℃ | |
Storage Temperature | -30~+80℃ | |
Recalibration Period | 2 years | |
Power Adaptor Power | AC 100 – 240 V ±10%, 48 – 66 Hz, 100 VA max. | |
Display | PC Interface. | |
Communication Port | USB and RS232 | |
Work Environmental | −10°C to +70°C 0°C to +45°C
<95% R.H. from 0°C to +45°C |
|
Dimensions | 235mm W×45mm H×310mmD | |
Weight | 10.0 lbs |
