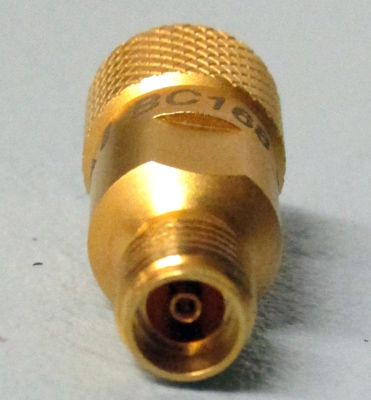

CC-5002-OF 50 ohm, 3.5 mm Open Female DC to 26.5 GHz

SKU: CC-5002 Category:
Brands:
Brands

Description

CC-5002-OF 50 ohm, 3.5 mm Open Female DC to 26.5 GHz

AGILENT 85052-60009 REPLACEMENT / ALTERNATE

The CC-5002-OF open female calibration device is an economical replacement for the Agilent 85052-60009 offset open female. For even greater savings you can purchase the CC50-3.5-26 RF CalKit  as a replacement for the Agilent 85052D.

AGILENT 85052-60009   Description / Specification: CUSTOM-CAL CC-5002-OF   Description / Specification:
The Agilent 85052-6009 offset open female has inner conductors that are supported by a strong, low-dielectric constant plastic to minimize compensation values. Specifications. Frequency Range: DC to 26.5 GHz. Impedance: 50 ohm. Phase: ±0.65° deviation from nominal (dc to <= 3 GHz), ±1.20° deviation from nominal (> 3 to <= 8 GHz), ±2.00° deviation from nominal (> 8 to <= 26.5 GHz).
The Custom-Cal CC-5002-OF 50 ohm, 3.5 mm Open Female’s housing is constructed from gold plated copper and the center pin is gold plated beryllium. Specifications. Frequency Range: DC to 26.5 GHz. Impedance: 50 ohm. Phase: ±0.65° deviation from nominal (dc to <= 3 GHz), ±1.2° deviation from nominal (> 3 to <= 8 GHz), ±2° deviation from nominal (> 8 to <= 26.5 GHz).
