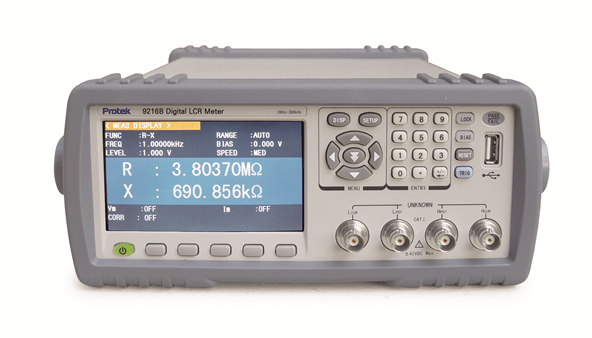

Protek 9216B 200kHz Bench Type LCR Meter

Hot

Protek 9216B 200kHz Bench Type LCR Meter

  • Low cost, high performance, Small Size
  • 3” TFT LCD & Dual display



  Protek-9216B

$2,400.00

SKU: 9216B Category:
Brands:
Brands
Request a Quote
  • Description
  • Additional information
  • Features
  • Specifications

Description

Want create site? Find Free WordPress Themes and plugins.

Protek 9216B 200kHz Bench Type LCR Meter

9216B High technology & quality circuit design and concentrating essence of LCR Test, Protek-9216B is a new generation compact LCR Meter of low cost and high performance. Also of traditional mechanical power switch, it New Software control power switch. The basic accuracy of 0.05% and good test stability can compare favorably with that high-end model. Being equipped with 4.3″ inch TFT LCD Display and brand new interface system, Protek-9216B LCR Meter possess elegant appearance and easy operation. Also, being provided with various interfaces and good compatibility with SCPI commands, Protek-9216B LCR Meter is convenient for constituting all kinds of test system and satisfy various kinds of demands for inspection, and scientific research.

Did you find apk for android? You can find new Free Android Games and apps.

Additional information

Weight 3.6 kg
Dimensions 36.0 x 23.5 x 10.5 cm
  • Low cost, high performance, Small Size
  • 3” TFT LCD & Dual display
  • Max 200kHz Test Frequency
  • Max 6 Digit Reading Resolution
  • 10mVrms~2.0Vrms Programmable Signal Level, 0~±5V50mA Built-in bias source
  • DCR, 50mV~ 2V Programmable test level, 10µΩ Resolution
  • Ls-Rd / Lp-Rd Function (L, Rd display simultaneously)*
  • Highest test speed 13ms/time
  • Selectable 30Ω/100Ω Impedance Signal Source
  • V/I Monitor and auto level adjustment function
  • Built-in comparator, 10Bins sorting and count function
  • File Storage and fimware update through USB Disk
  • RS-232C, RS485, USB, HANDLER, GPIB Interface
  • Rd means DCR
Description Protek 9216B




Basic Measurement Accuracy

LCRZ 0.05%
DCR 0.1%


Cabliration Condition

Warm up time : ≥30minutes ; Environment temperature : 23±5℃ Signal Level : 1Vrms ;

Correction: after OPEN, SHORT

Testing cable length : 0m

Test Signal Frequency 20Hz ~ 200kHz
SIgnal Source Output Impedance 30Ω, 100Ω, ±1% @1kHz






AC Test Signal Level



Normal

10mV~ 2Vrms
Resolution : 10mV / Accuracy : 10% x Setting voltage+2mV
100µA~ 20mArms / Resolution : 0.1mA


Constant level (ALC ON)

20mA~ 1Vrms
Resolution : 10mV / Accuracy 10%
200µA~ 10mArms / Resolution : 0.1mA
DCR test signal level 50mV~ 2V DC / Resolution : 0.5mV




DC Bias Voltage Source

0V~ ±5V
Resolution : 0.5mV / Accuracy 1%
0mA~ ±50mA
Resolution : 0.5µA
Test Parameter lZl, lYl, C, L, X, B, R, G, D, Q, θ, DCR
DCR Display Range 0.00001 Ω~ 99.9999 MΩ








LCR Parameters Display Range

lZl, R, X    0.00001Ω ~ 99.9999Ω

lYl, G, B    0.00001µs ~ 99.9999s C         0.00001pF ~ 9.99999F

L         0.00001µH ~ 99.9999Kh D         0.00001 ~ 9.99999

Q         0.00001 ~ 99999.9

θ(DEG)     -179.999° ~ 179.999° θ(RAD)     -3.14159 ~ 3.14159Ω

Δ%         -999.999% ~ 999.999%

Display Digits 6 digits
Measurement Time (≥10kHz) Fast : 75meas/sec(13ms), Medium : 11meas/sec(90ms)

,Slow : 2.7meas/sec(370ms)

Equivalent circuit Serial, Parallel
Range Mode Auto, Hold
Trigger Mode Internal, Manual, External, Bus
Average time 1-255
Correction Open, Short, Load
Math operation Direct reading, ΔABS, Δ%
Description Protek 9216B
Trigger Delay Time Setting 0 ~ 60.000s 1ms steps
Step Delay Time Setting 0 ~ 60.000s 1ms steps


List Sweep

- 10 points list sweep

- Frequency, AC voltage/current, internal/external bias voltage/current can be swept.

- Each sweep point can be sorted separately



Comparator Function

10 bins, BIN1-BING9, NG, AUX
Bin count function
PASS, FAIL LED Display on front panel
Built-in Storage Internal 100 LCRZ instrument setting files, 201 times test results
USB Storage Instrument setting files, measurement result CSV fIles,

printed screen (GIF format)



Interface

Control HANDLER
Communication USB HOST, RS-232C, RS485(optional), GPIB(optional)
Storage USB DEVICE ( U-Disk storage )
Dimension 235mm(W) * 105mm(H) * 360mm(D)
Weight ± 3.6 kg
Standard Products Manual, TEST FIXTURE, Power Cable, Fuse(1), CD, USB Cable
